CN canopy fixing SINGLE - A Ø 50mm, AISI 316, SATIN

Go to Product feedback

€52.71

Shipping costs are not included in the price.

Shipping

from €0.00 - Self-pickup - Warsaw (office) (Poland)

or individual pricing

Select a product variant:

Individual variants may differ in price

Choose a tension length

Select

Without tension

0.86m

1,00m

1,16m

1,30m

1,50m

Below I'll write an another length

Another length of tension (0 - 1,5m) Optional

Quantity

pcs.

Availability:

Product available

Shipping time: 3 days

Description

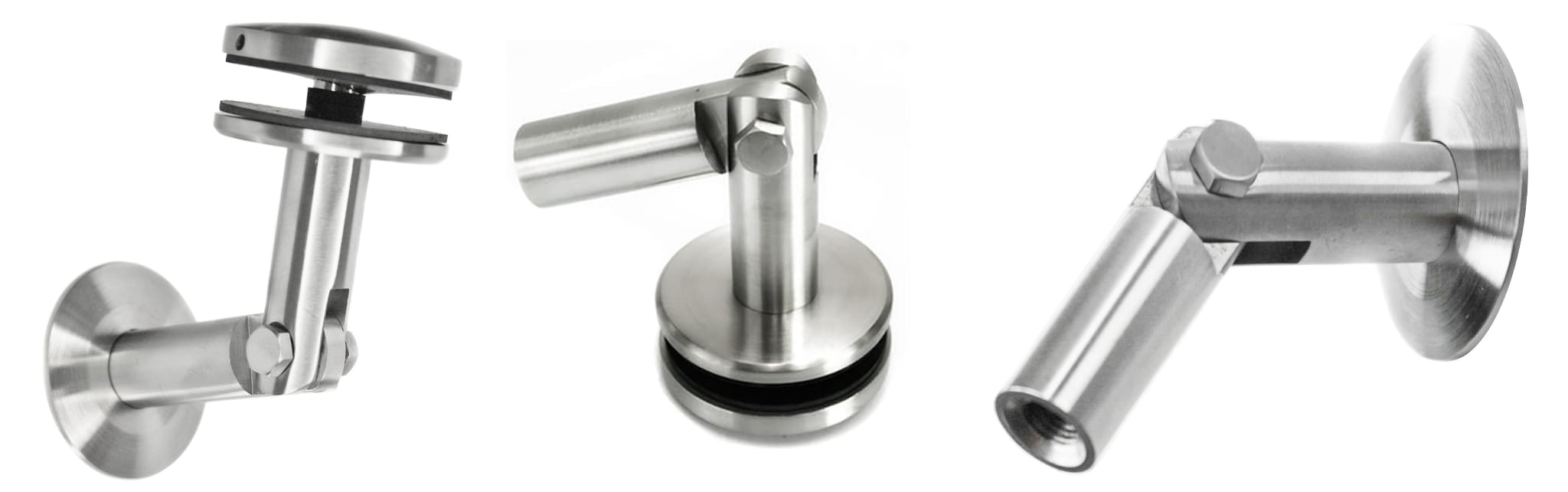

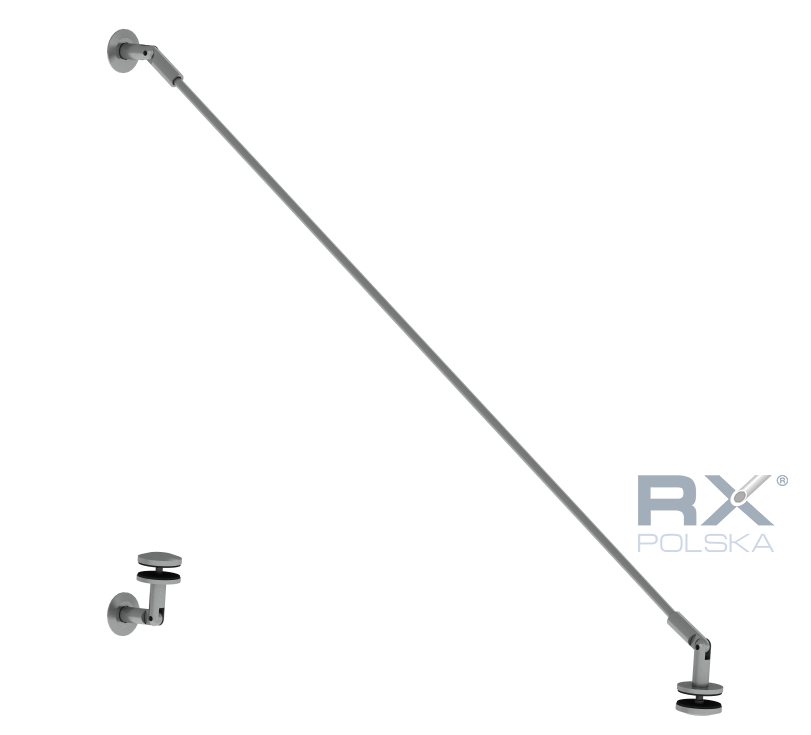

The composition of the set:

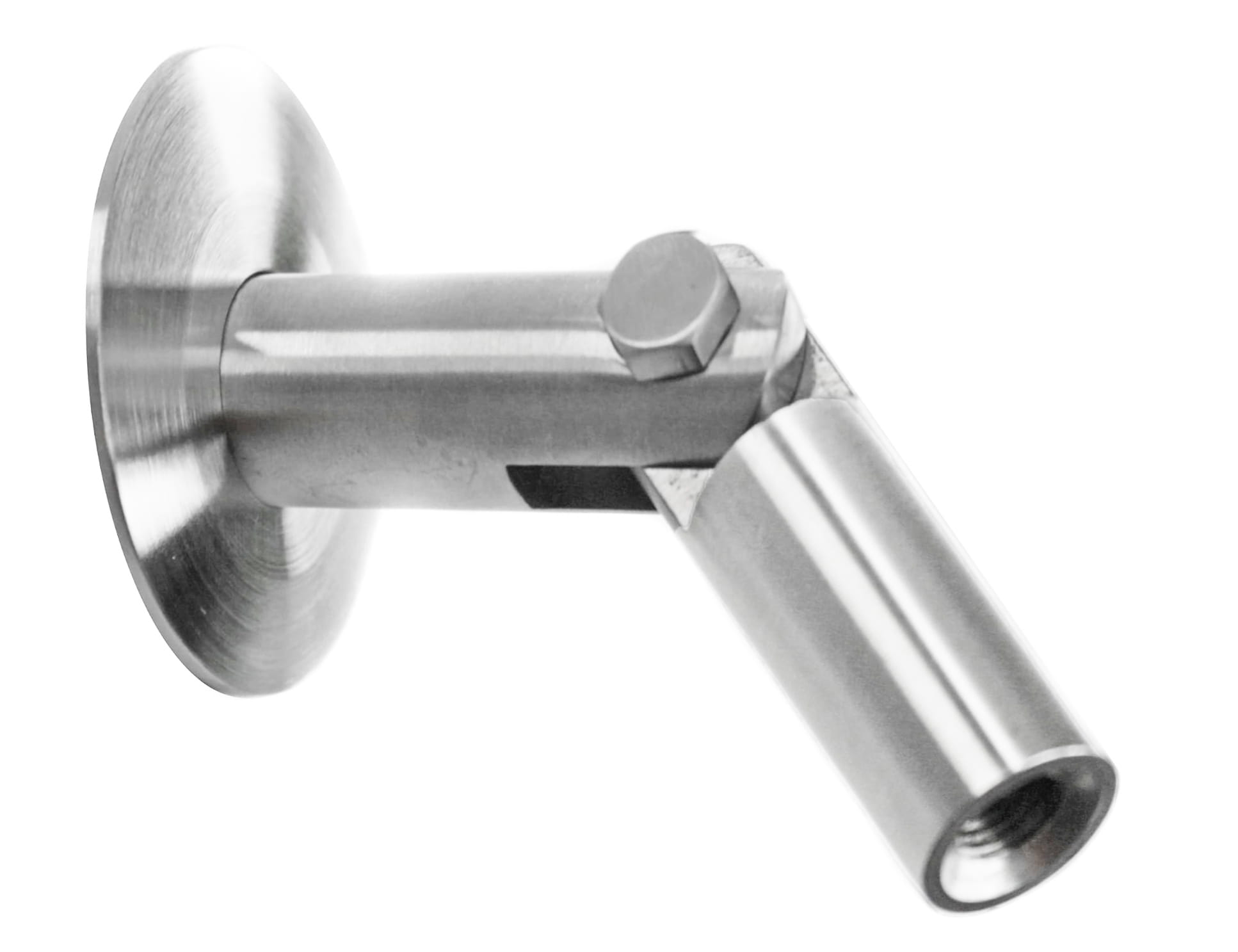

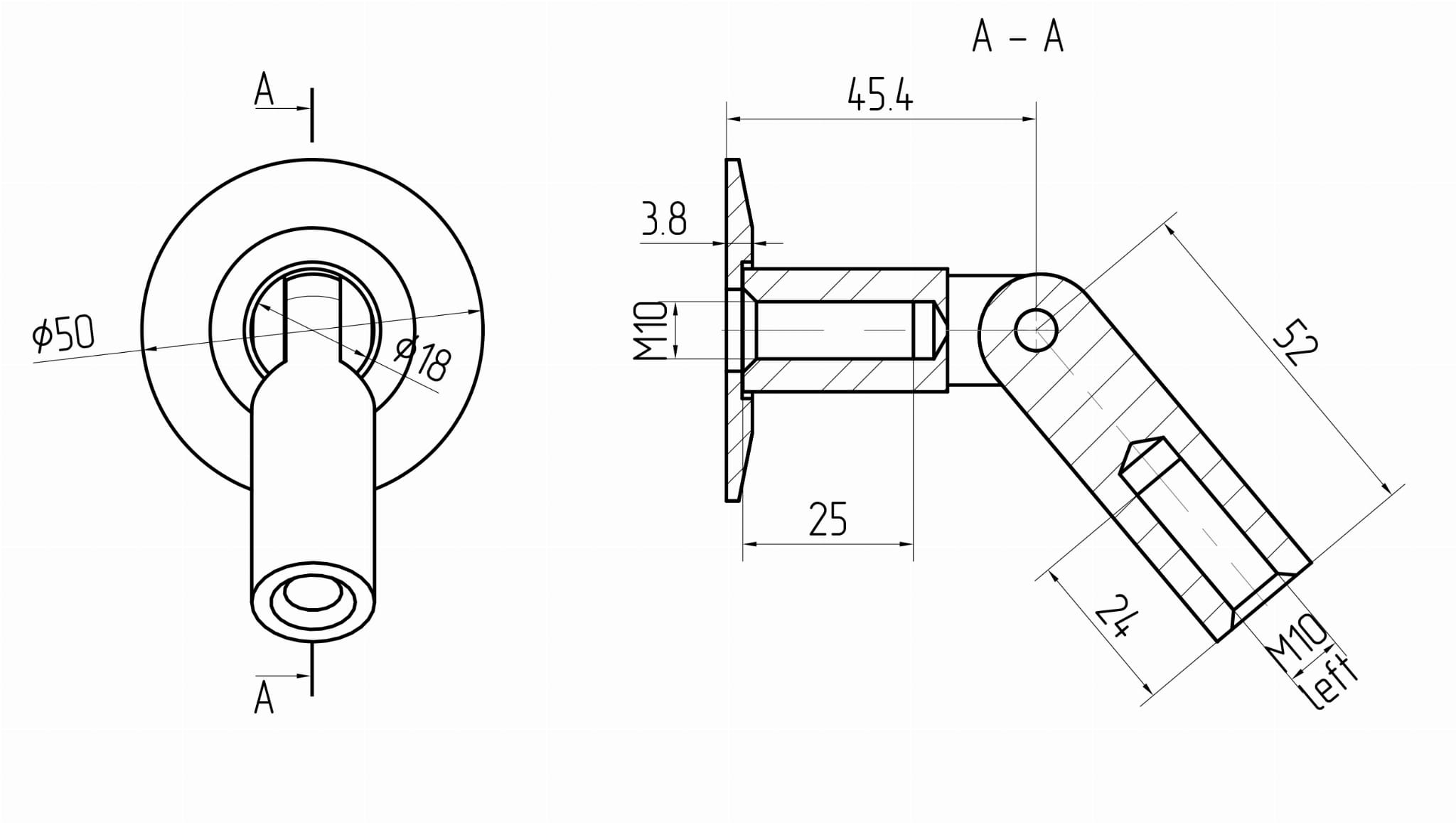

1 x wall mount - tension with a cover

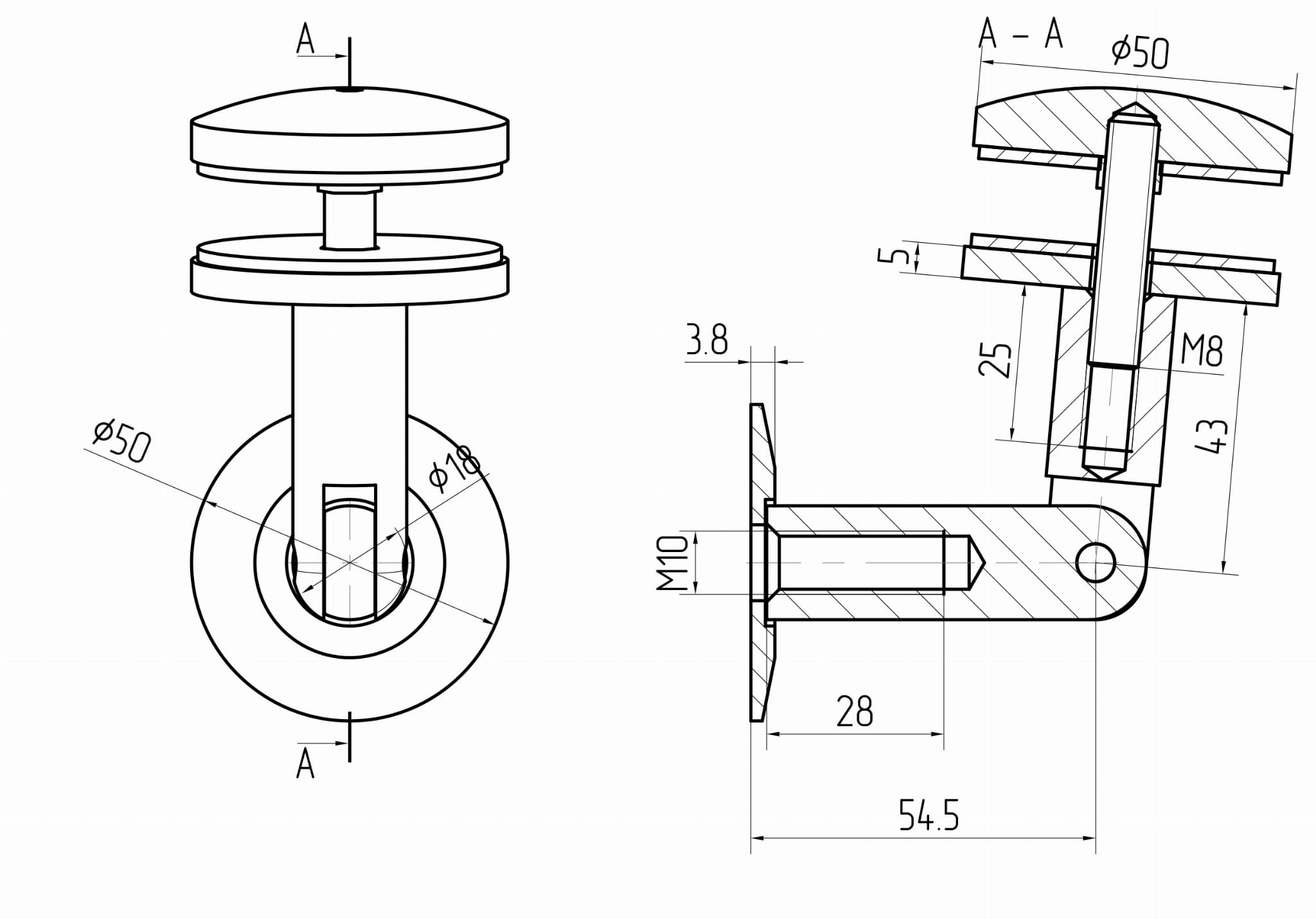

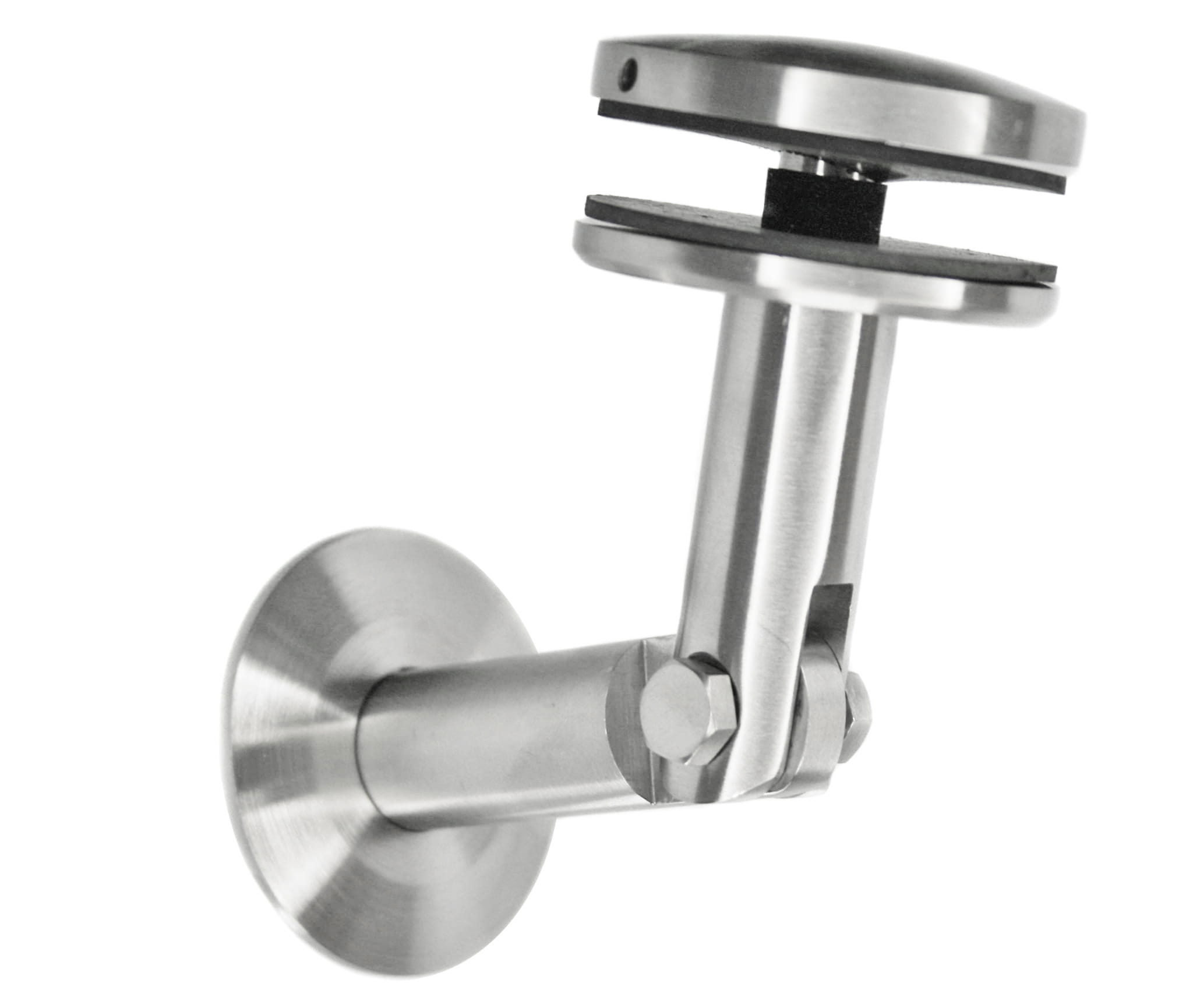

1 x wall mount - glass with a masking frame

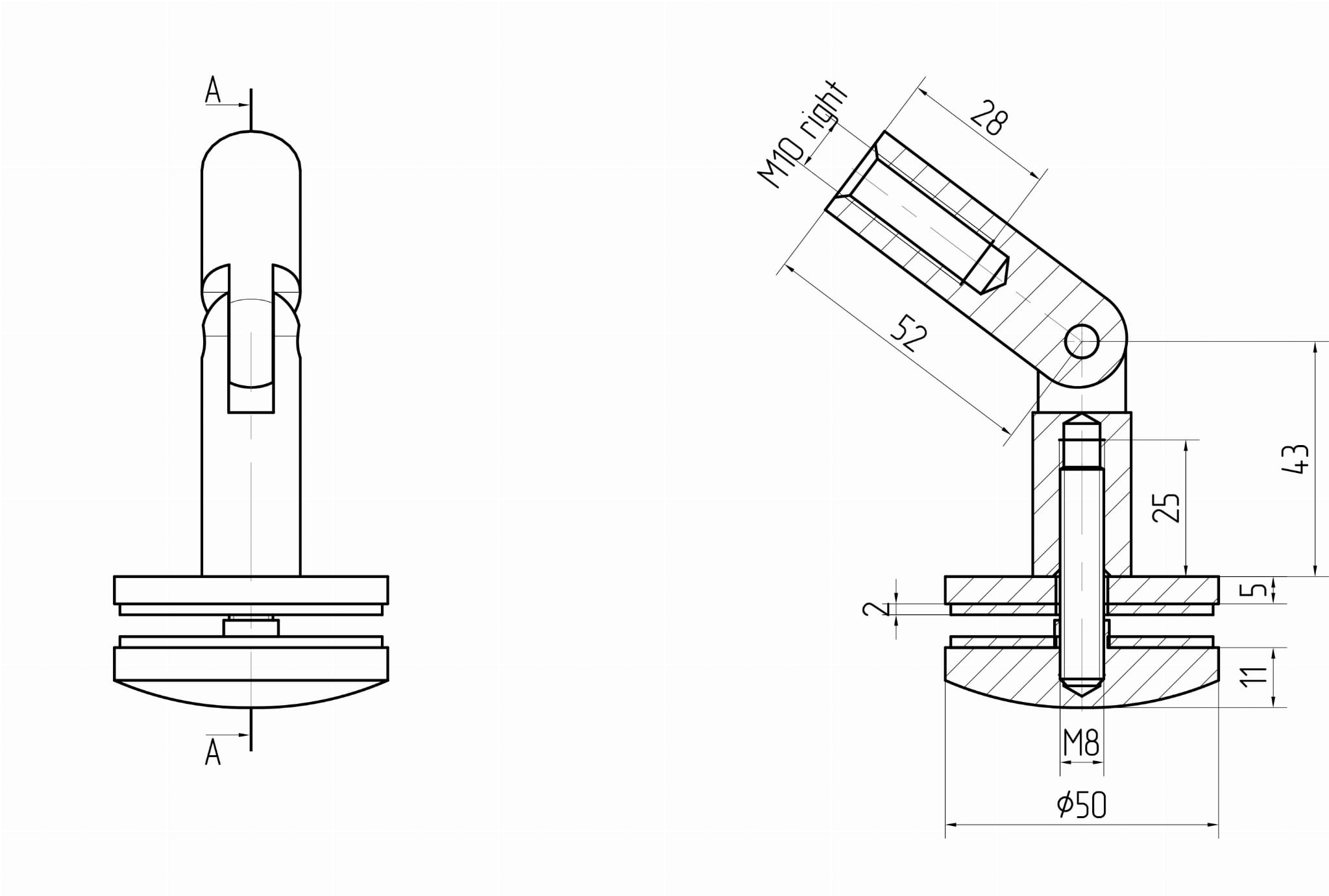

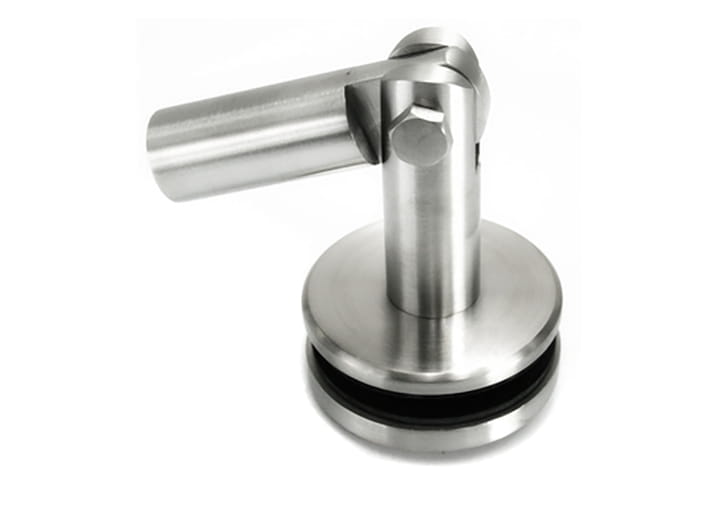

1 x tensioning-glass fixing
1 x tension

• Assembly of elements to the mounting surface on single M10 rods
• Glass holder - 50mm
• Minimal holes in the glass - ø18 mm
• Glass thickness: 8mm-17.52mm
• Elements of joints made of a rod with a diameter of 18mm
• Type of steel - AISI 316
• Surface: satin (matte)

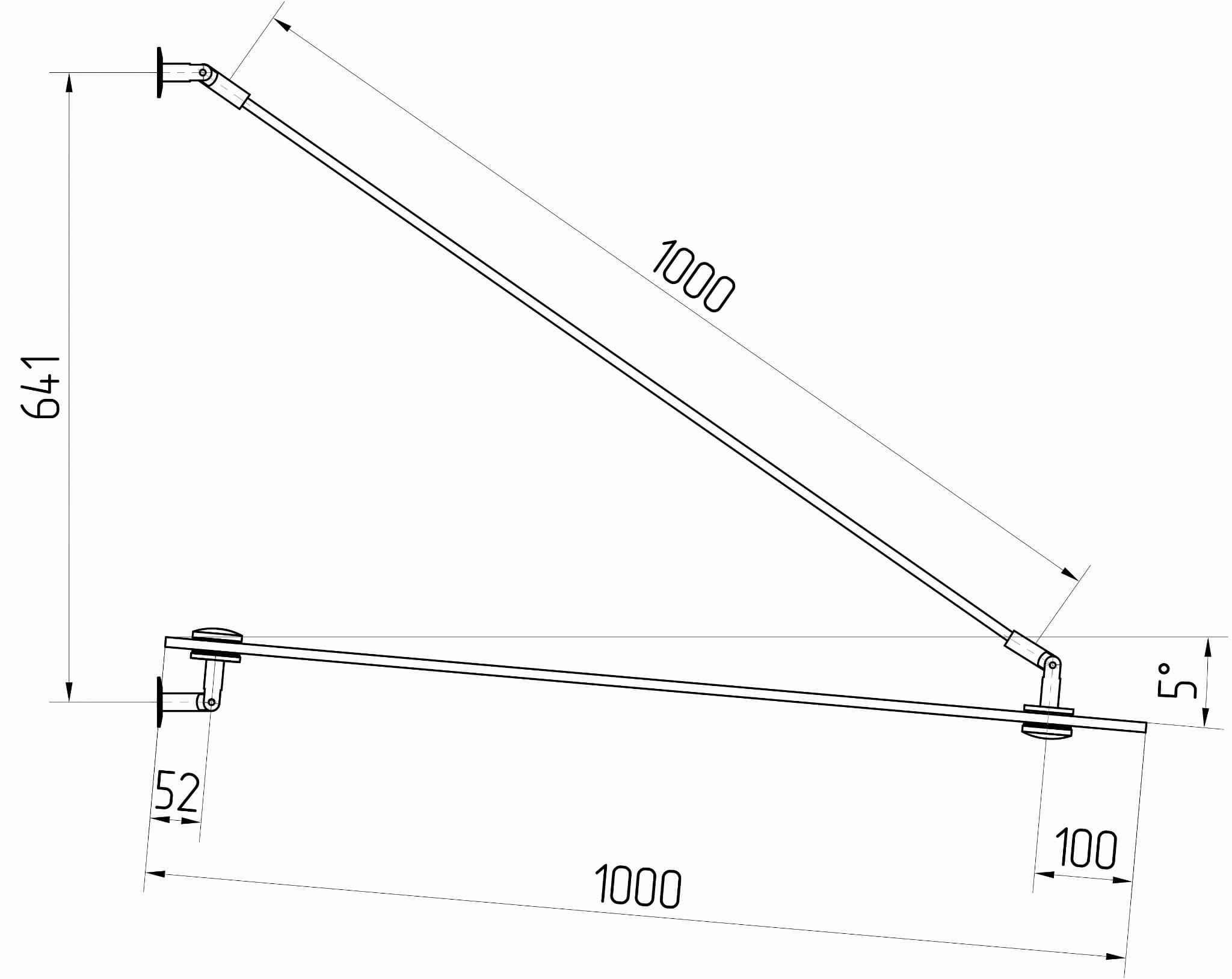

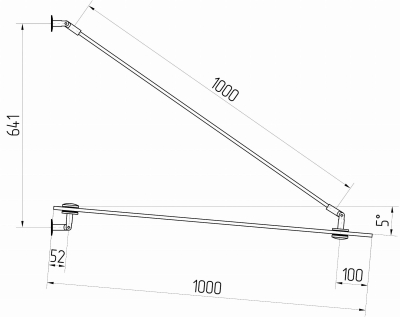

• Maximum reach of the visor: 1500mm
• Maximum distance between the slings: 1200mm
• Standard tension length 1000mm
• Possibility to make a tension of a different size - the length of a tension up to 1500mm in price (please write the length of the tension in the "Remarks to the order")
• The tension is made of a rod fi 10mm with threads on the ends M10 right / M10 left
