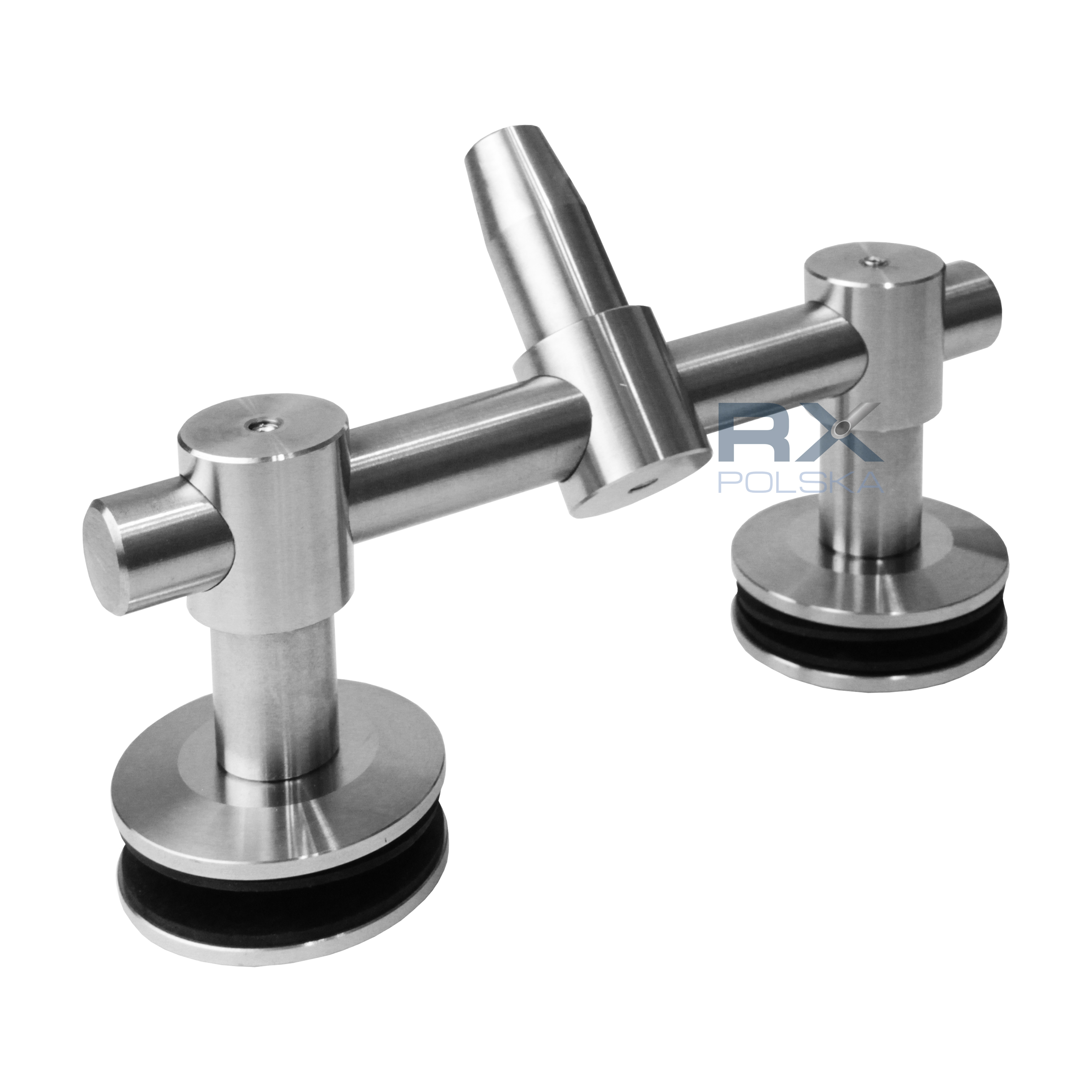

CNP canopy fixing DOUBLE - A Ø 60mm, AISI 304, SATIN

Go to Product feedback

€111.29

Shipping costs are not included in the price.

Shipping

from €0.00 - Self-pickup - Warsaw (office) (Poland)

or individual pricing

Select a product variant:

Individual variants may differ in price

Choose a tension length

Select

Without tension

0.86m

1,00m

1,16m

1,30m

1,50m

Below I'll write an another length

Another length of tension (0 - 1,5m) Optional

Quantity

pcs.

Availability:

Product available

Shipping time: 3 days

Description

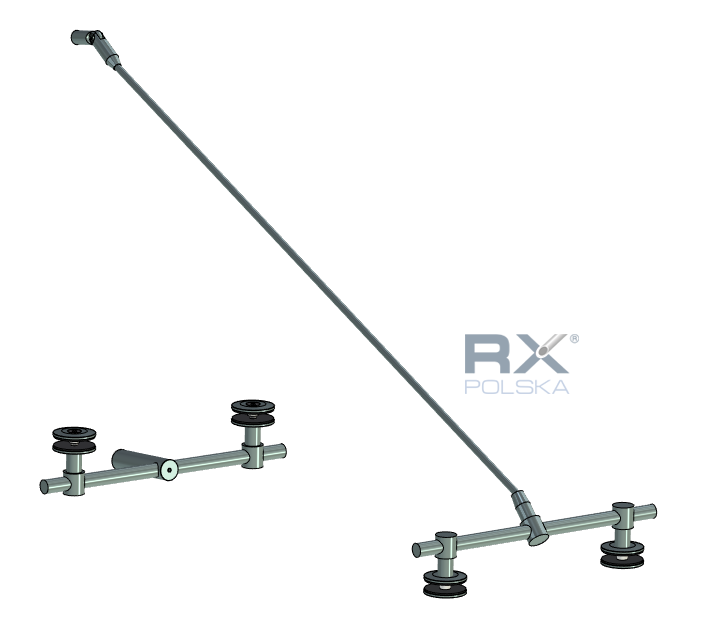

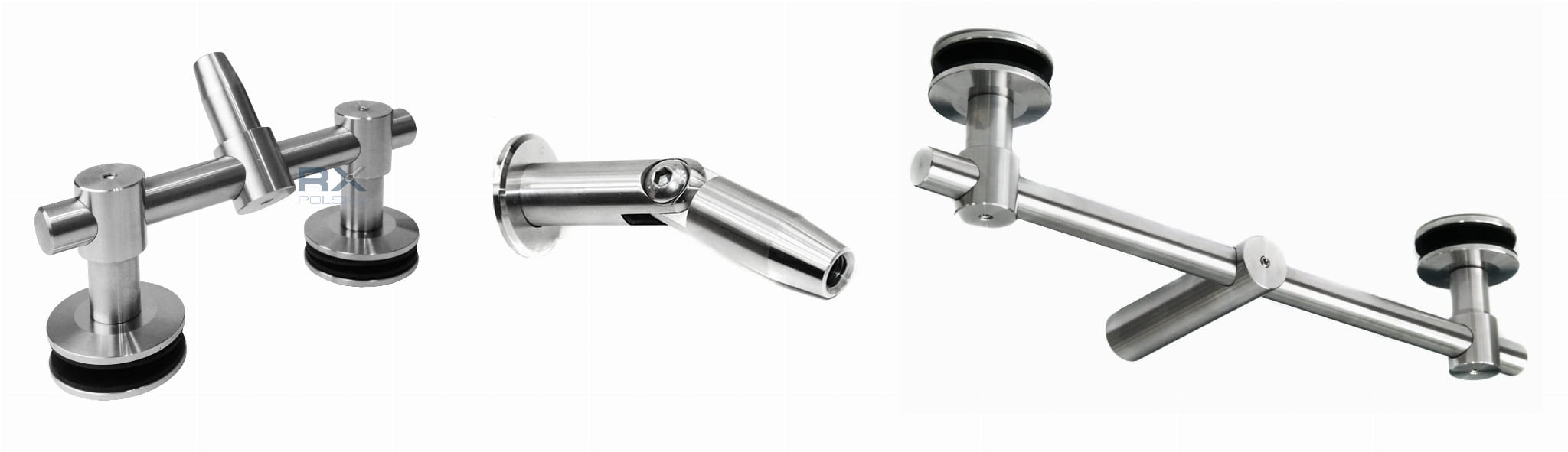

The composition of the set:

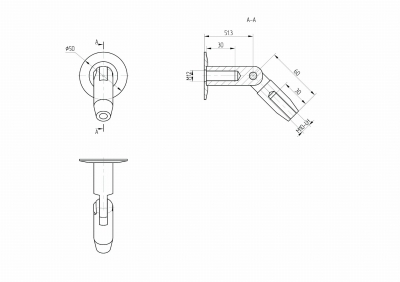

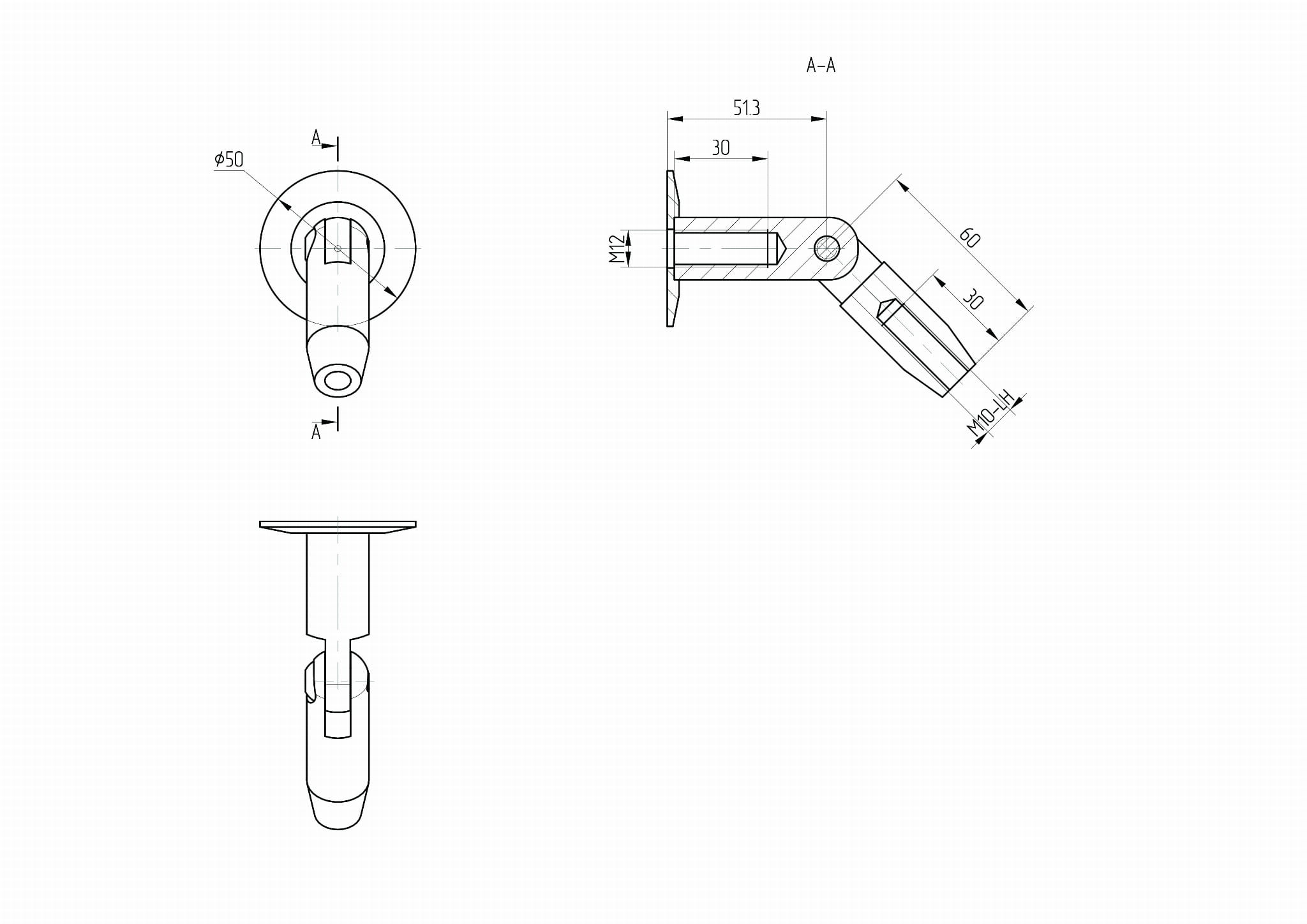

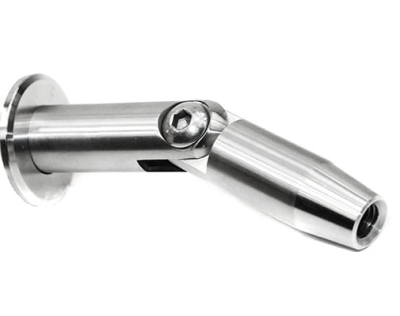

1 x wall mount - tension with a cover,

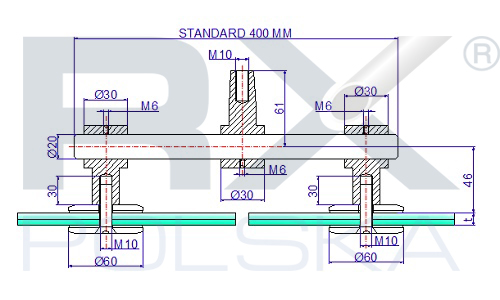

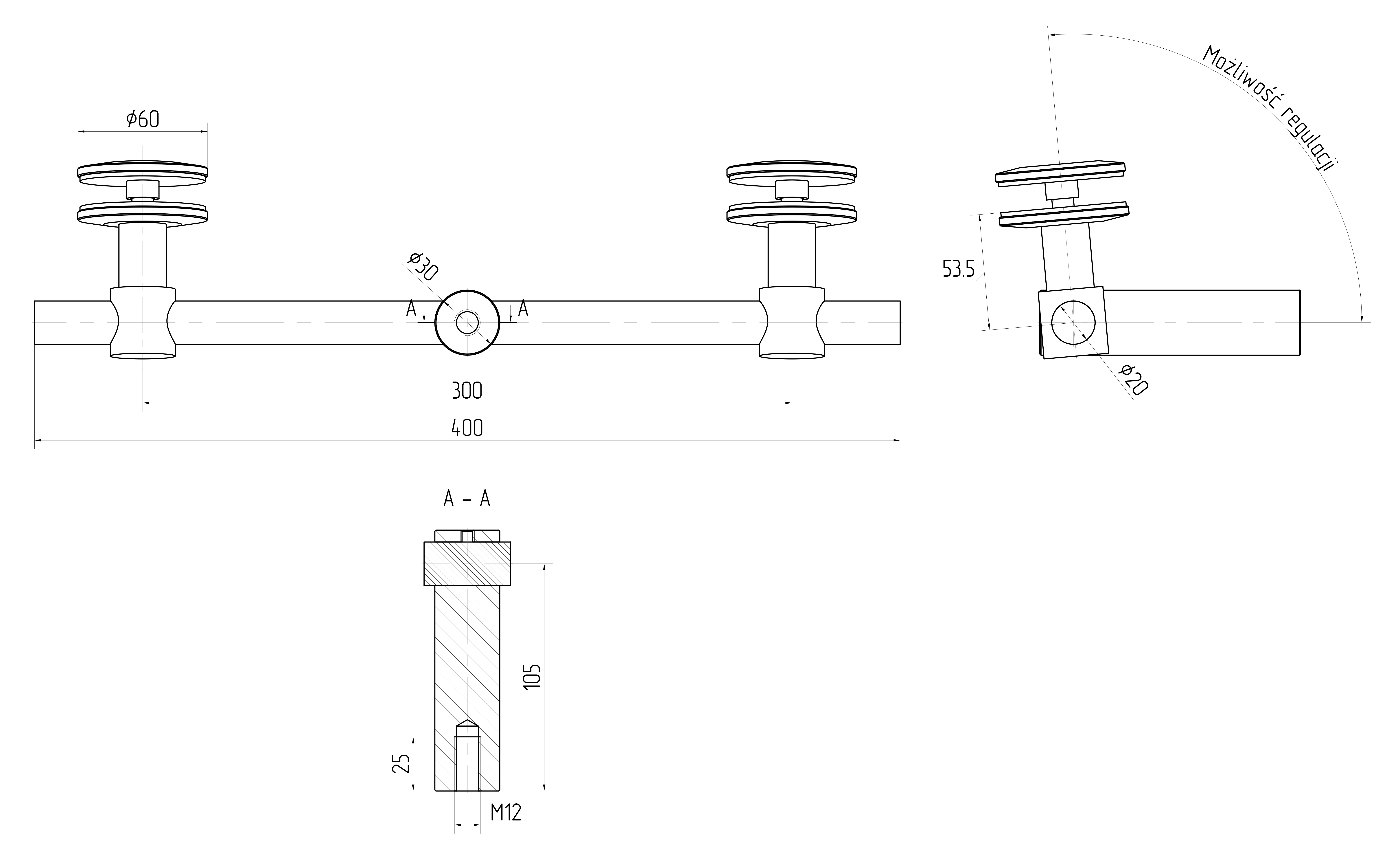

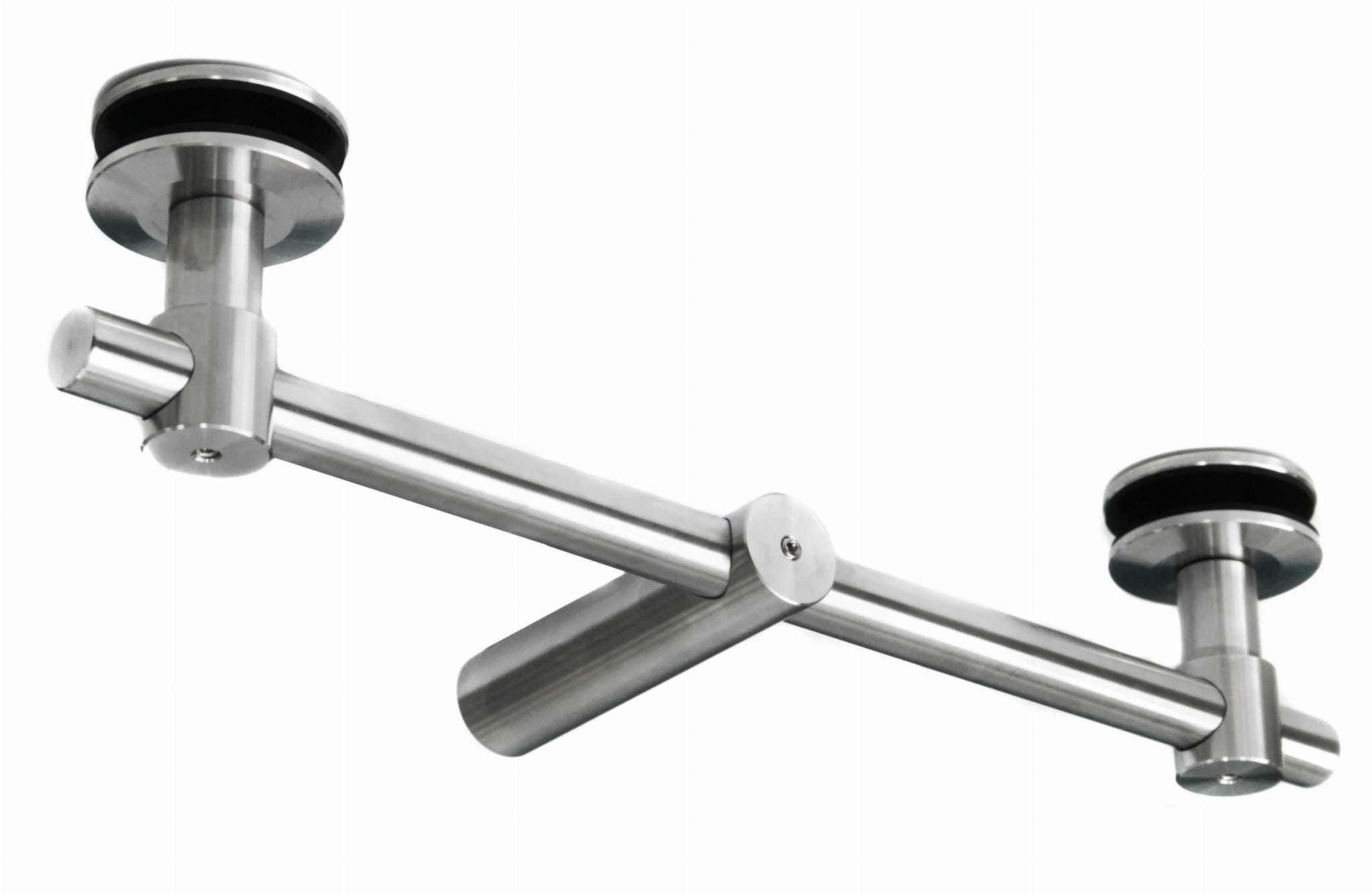

1 x wall mount - glass with a masking frame,
1 x tensioning-glass fixing,
1 x tension
1.5 m rubbers gasket between glass

Description:

Mounting elements to the mounting surface on rods - M12
Glass holder - point holder fi 60mm
Minimal holes in the glass - ø16 mm
Glass thickness: 8-17.52 mm
Joint elements "Wall - tension" and "Tension - glass" made of a rod d fi 20mm. Element "Wall - glass" made on a rod fi 30mm
Steel type - AISI 304
Surface: satin (matte)
Maximum projection of the canopy: 1500mm
Standard draw length 1000mm
Rubbers gasket - length 1500mm - material transparent silicone
Possibility to make a tension of a different size - the length of a tension in the price of up to 1500mm (the length of the tension, please, write in the "Notes to the order")
The tension is made of a rod fi 10mm with threads on the ends M10 right / M10 left
