Glass Holder - ø 50 mm, with angle, AISI 304, SATIN

Go to Product feedback
with VAT without VAT
Price €11.69
incl. 23% VAT

Shipping costs are not included in the price.

Shipping from €0.00 - Self-pickup - Warsaw (office) (Poland)

or individual pricing

Select a product variant:

Individual variants may differ in price

Select Silicone (white) EPDM (black) PCV (transparent)
pcs.
Availability:
product-availability-module Product available
Shipping time: 24 h

Product features

  • Handle diameter ø 50mm
  • Distance 30mm thread M10
  • Rod mounting M10
  • Glass thickness 8 - 21.52mm
  • Minimum hole in glass ø 12mm
  • Seals White Silicone
  • Steel AISI 304
  • Surface Satin
  • Surface mounting Flat surface
  • Adjustable No

Description

  • Spot fixing of glass on the angle 90 ° - 96x30 / 96x30mm
  • Thickness of the angle - 6mm

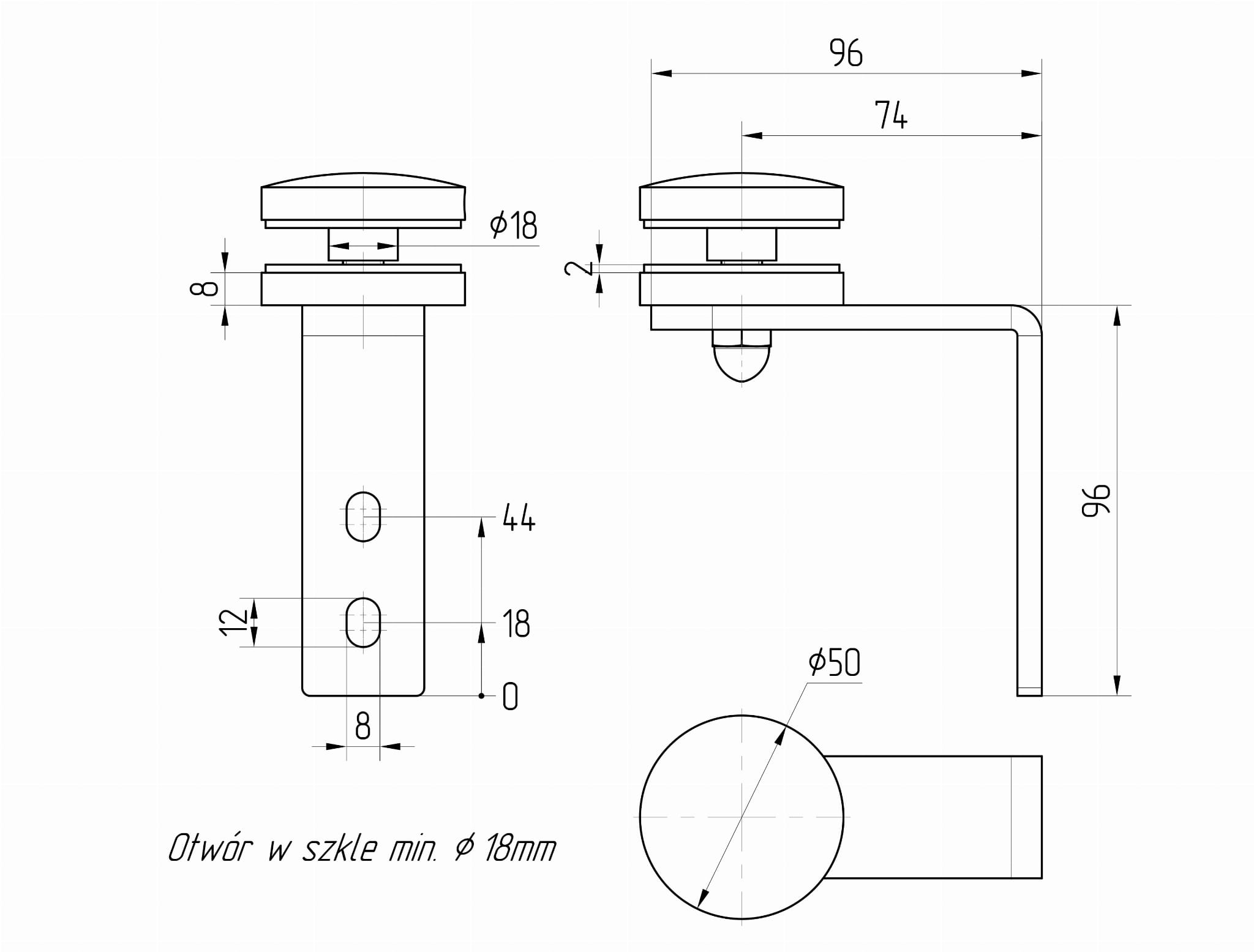

  • Mounting to the supporting surface on two holes Ø 8mm - holes arrangement (see technical drawing)
  • Point holders Ø 50mm with distance from flat bar L = 8mm, sleeve with through hole fi 10,5 mm
  • The minimum mounting hole in the glass - ø 18 mm
  • Seals - silicone - thickness 2 mm - set included
  • Mounting rod in M10x45mm spot holder (can be exchanged for shorter / longer - ask the seller)
  • Glass thickness in the range of 8mm to 17,52mm (the possibility of installing a different thickness of glass - ask the seller)
  • Satin surface (matte)
  • Material: stainless steel AISI 304
