Glass holder ø30/37mm M6 with hole for pipe ø10mm, AISI 316, SATIN

Go to Product feedback

€5.83

Shipping costs are not included in the price.

Shipping

from €0.00 - Self-pickup - Warsaw (office) (Poland)

or individual pricing

Quantity

pcs.

Availability:

Product available

Shipping time: 24 h

add to compare

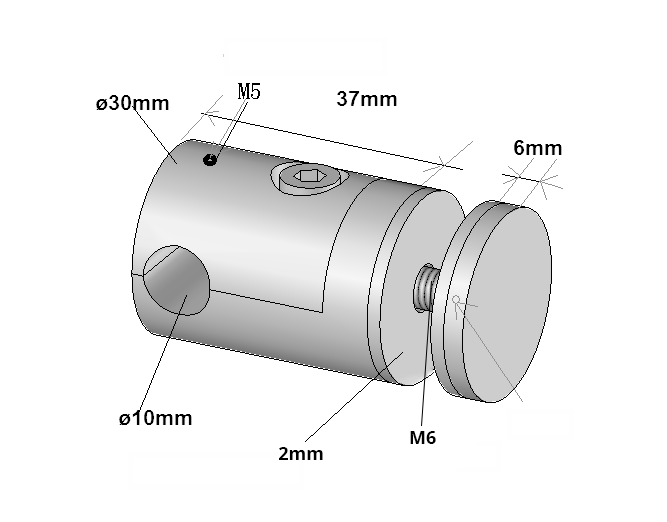

Handle diameter ø 30mm
Distance 37mm thread M6
Rod mounting M6
Glass thickness 4 - 8,00mm
Minimum hole in glass ø 8,5mm
Seals EPDM
Steel AISI 316
Surface Satin
Surface mounting Flat surface
Adjustable No
Additional information Nominal outer diameter of the sleeve: ØX − 0.5 ± 0.2 mm
Additional information Split sleeve (two-piece). Features a hole for a 10 mm tube.

Description

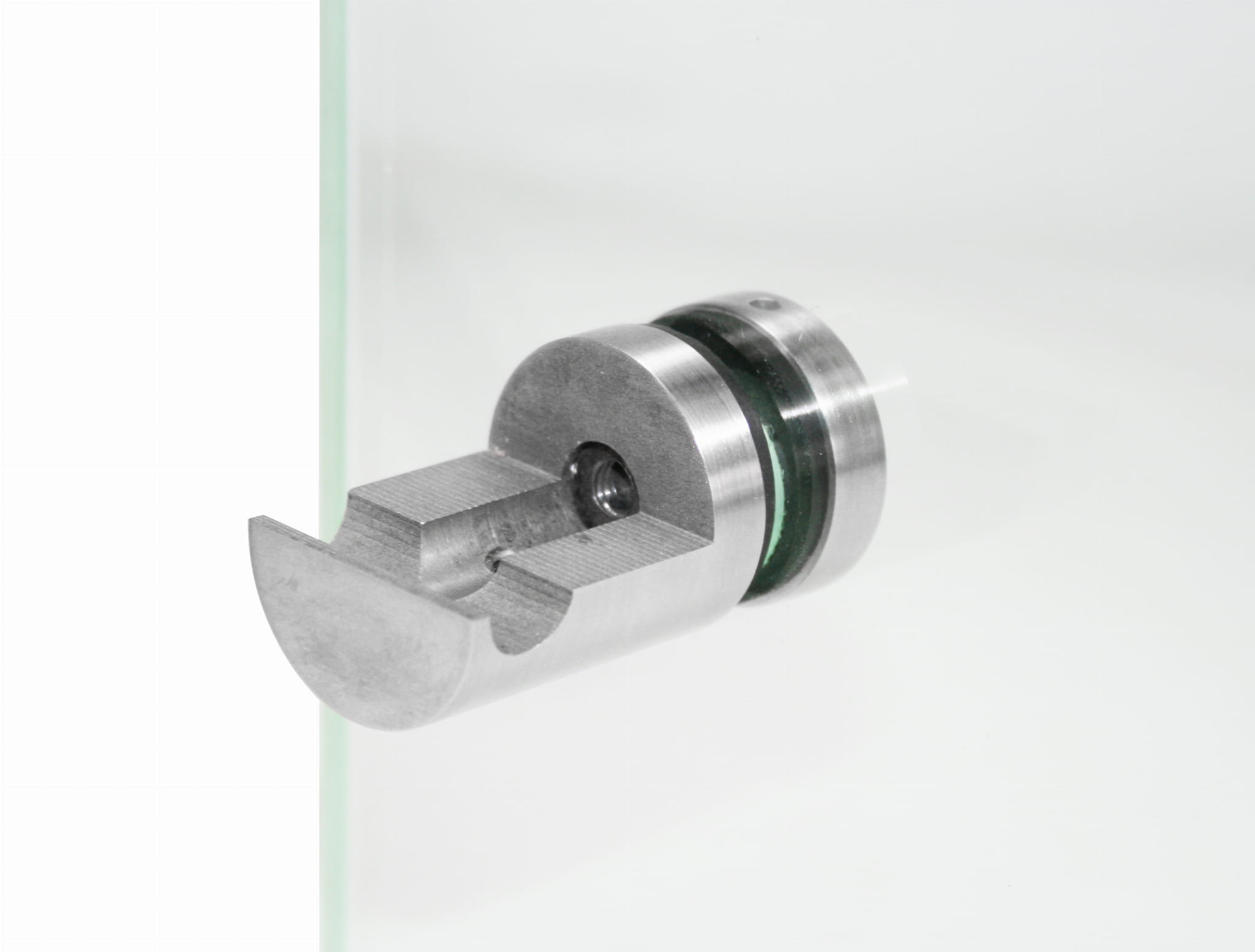

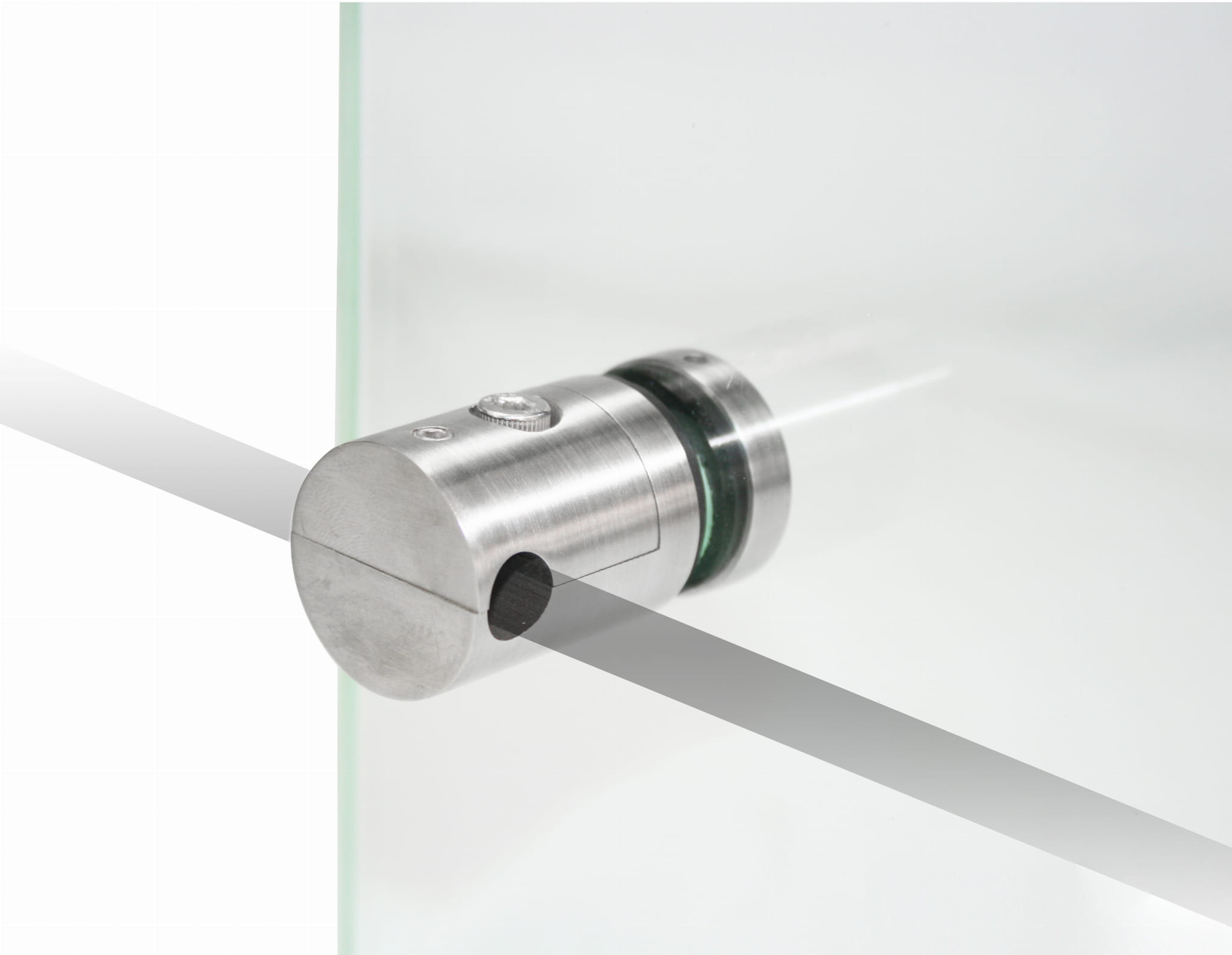

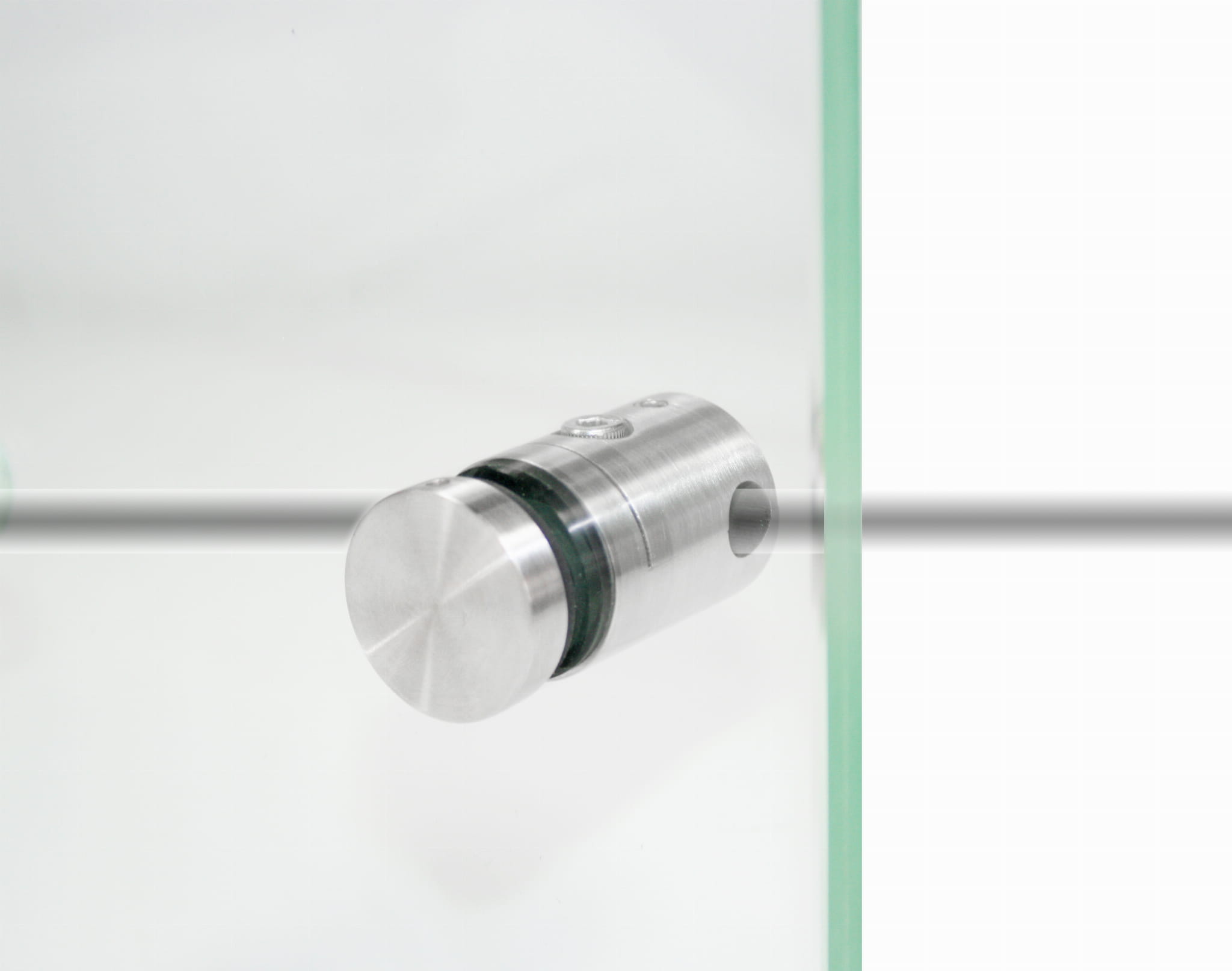

On one side, the holder is attached to glass with a maximum thickness of 8 mm, on the other side, it is attached to a tube or a 10 mm rod.

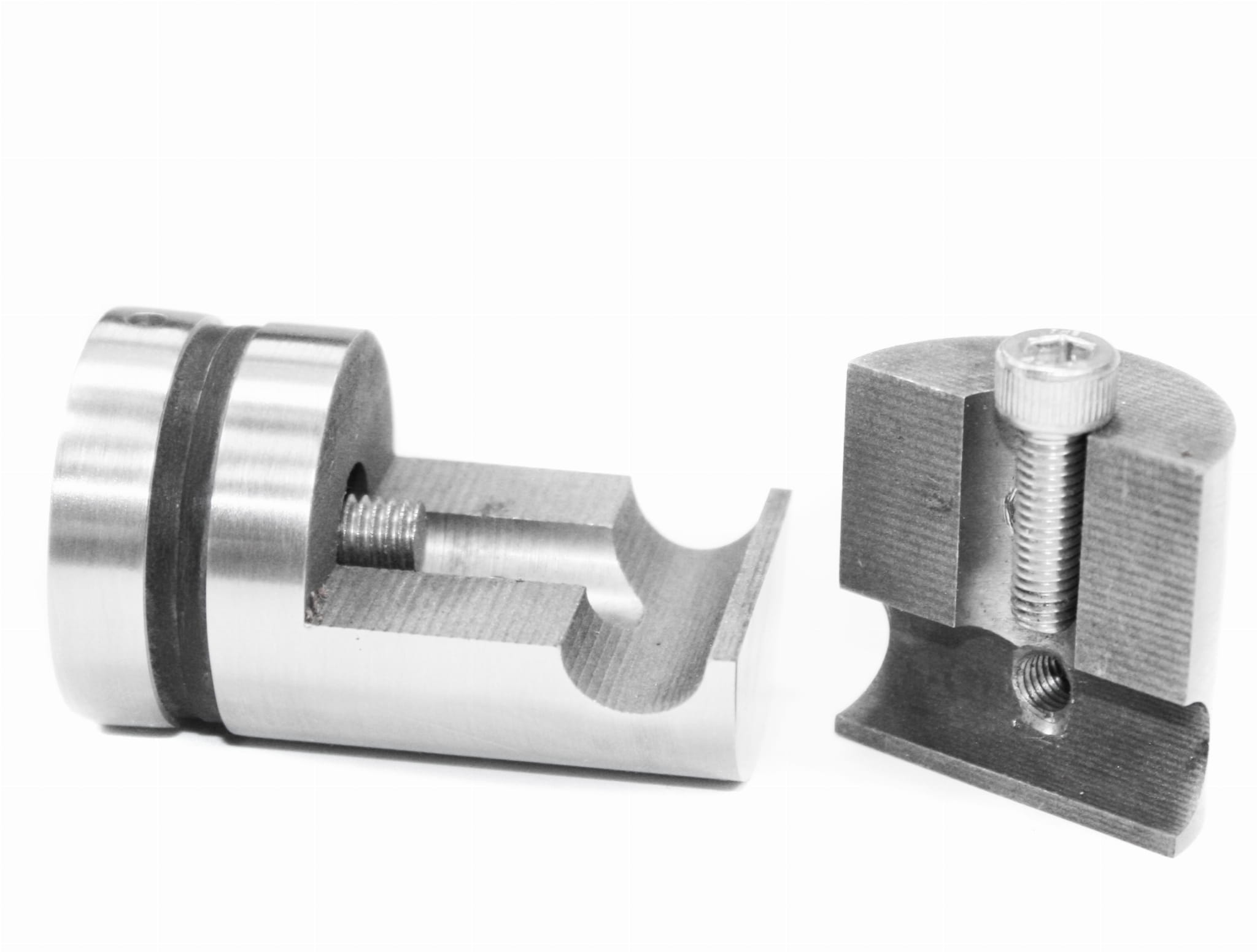

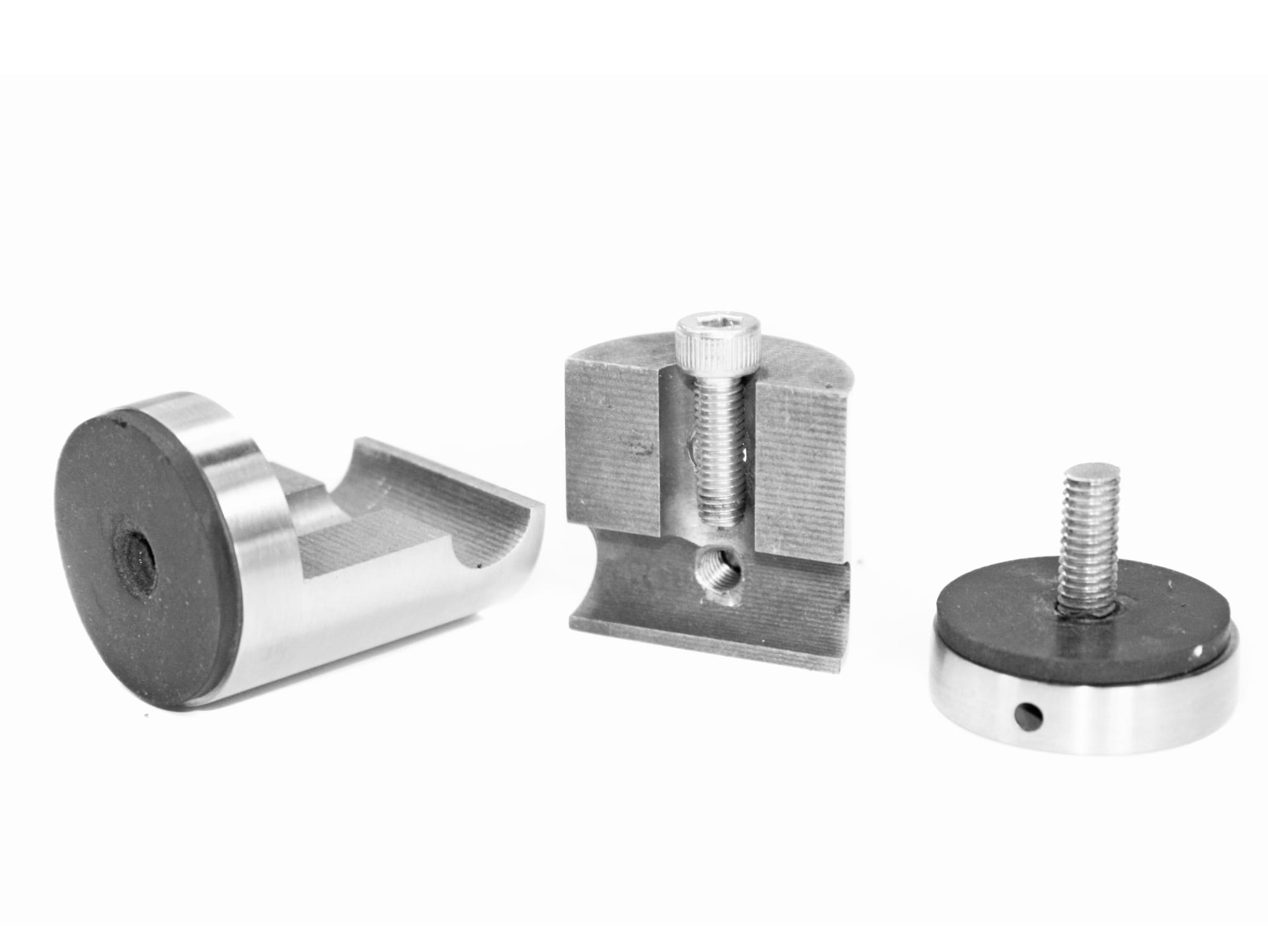

The sleeve is divided into 2 parts, which allows you to install the glass on already installed railings with tubes, without unscrewing them first.
Black EPDM seals, 2 mm thick.
Rod M6x17mm

Application

Thanks to its high corrosion resistance, the holder is suitable for outdoor installation, e.g. on balcony or terrace balustrades.
The holder is most often used for mounting glass balustrades with support tubes, which ensures a modern appearance and stability of the structure.
The holder allows stable installation of balustrades on stairs or balconies.
