CNP canopy fixing SINGLE Ø 60mm, AISI 304, SATIN GUNMETAL (PVD)

Go to Product feedback

€88.74

Shipping costs are not included in the price.

Shipping

from €0.00 - Self-pickup - Warsaw (office) (Poland)

or individual pricing

Select a product variant:

Individual variants may differ in price

Choose a tension length

Select

Without tension

0.86m

1,00m

1,16m

Another length of tension (0 - 1,5m) Optional

Quantity

pcs.

Availability:

Available on request

Shipping time: 14 days

Description

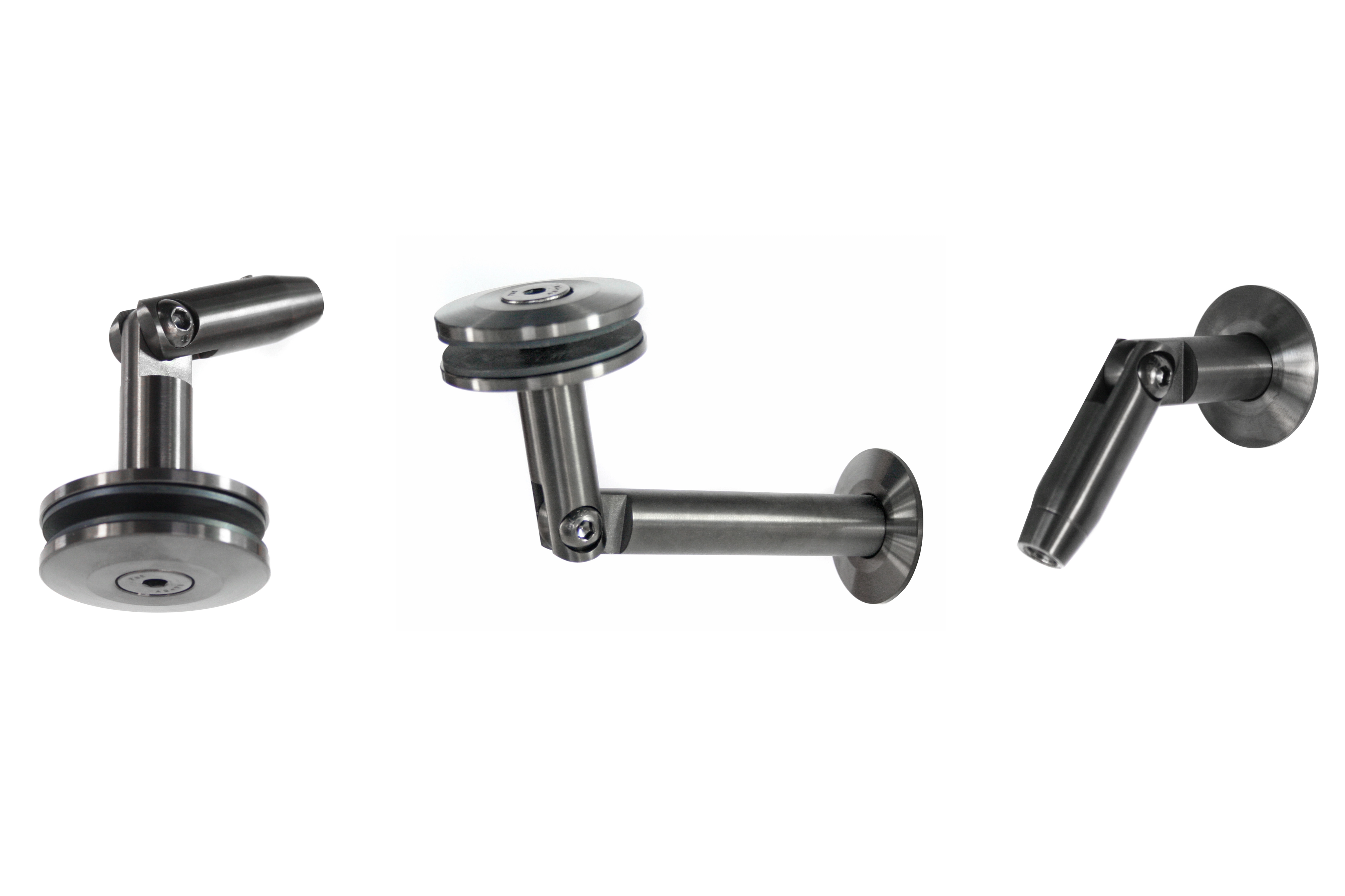

The composition of the set:

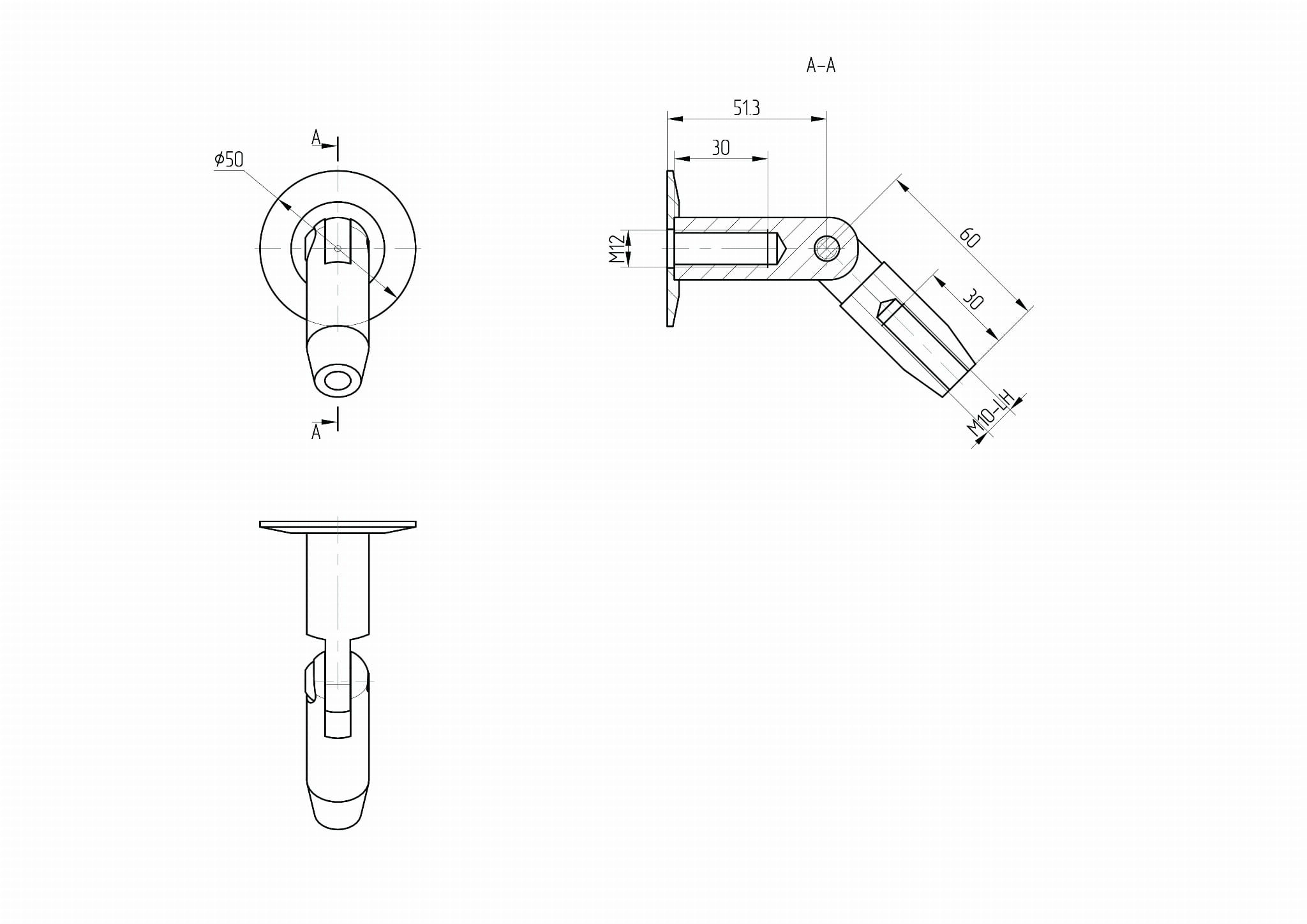

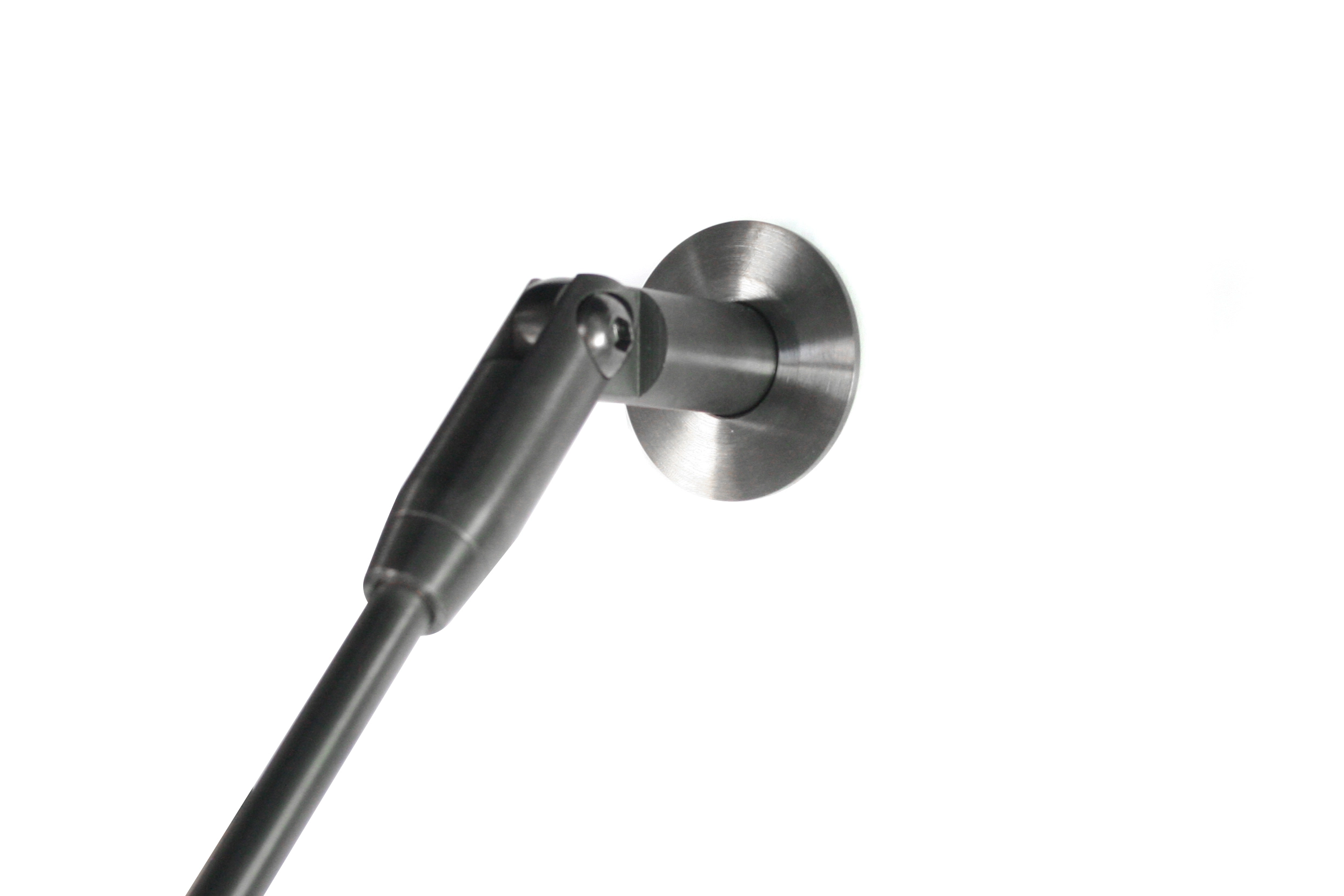

1 x wall mount - tension with a cover,

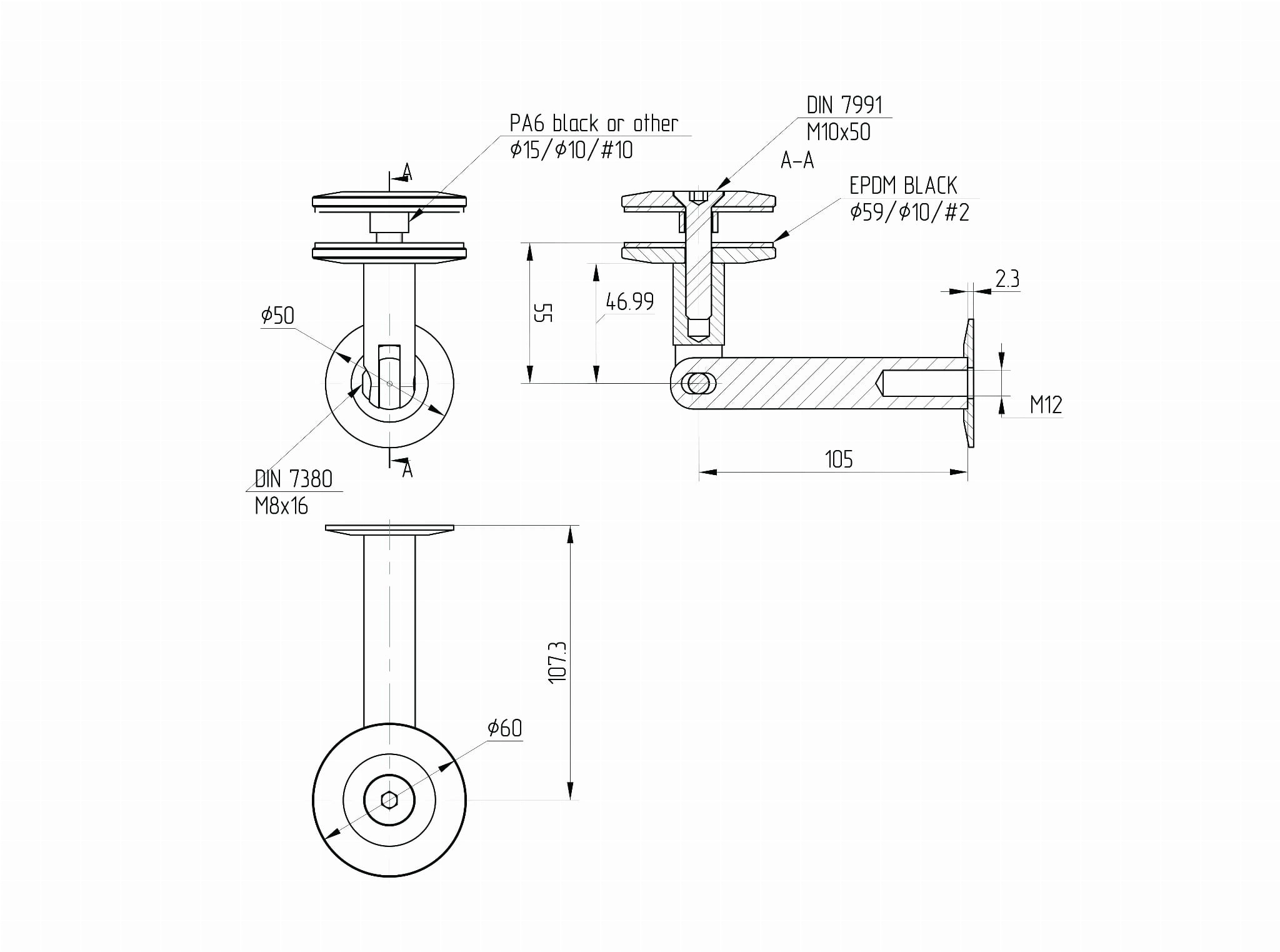

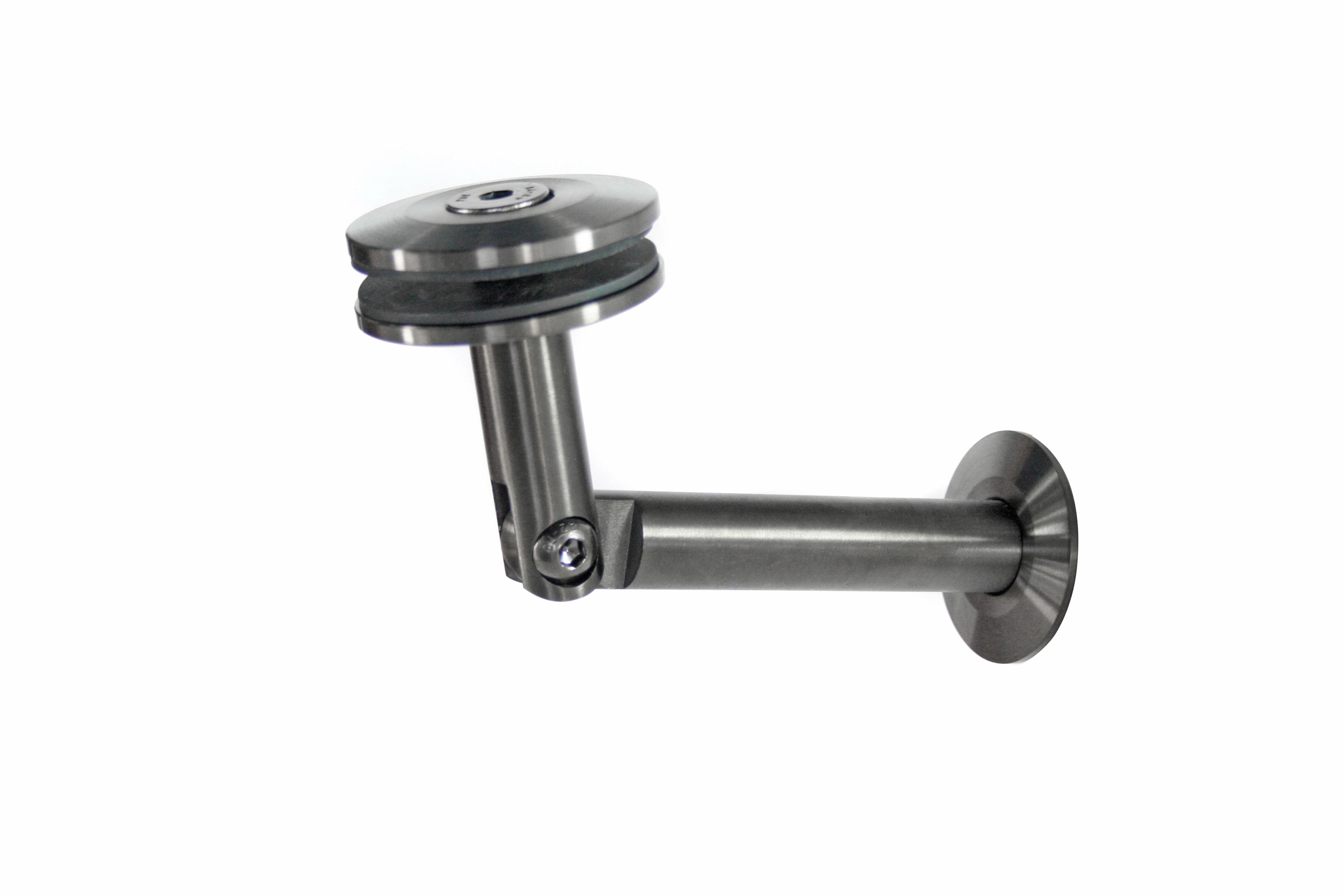

1 x wall mount - glass with a masking frame,
1 x tensioning-glass fixing,
1 x tension

• Mounting elements to the mounting surface on individual M12 rods

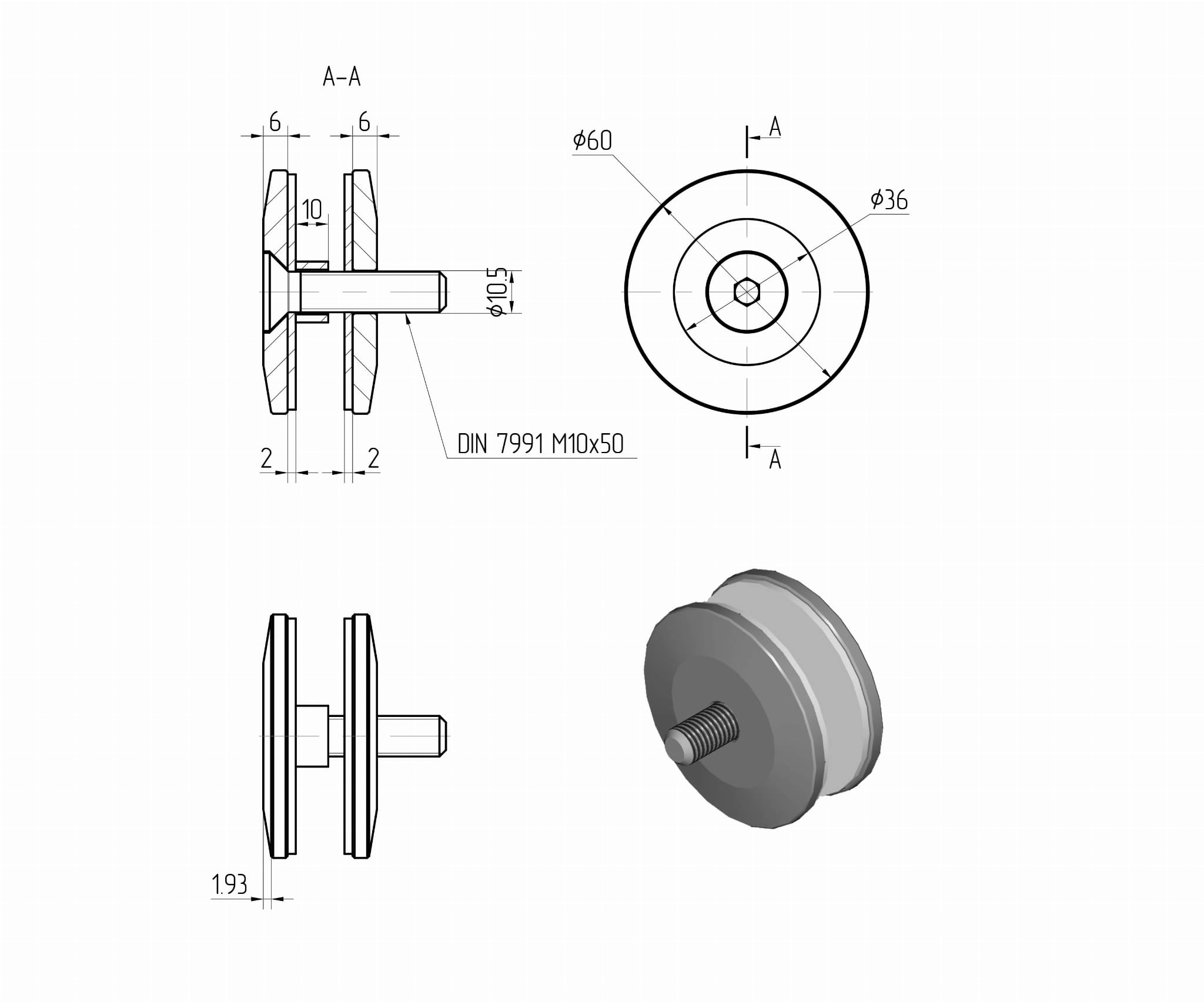

• Glass mounting brackets - Ø 60mm spot holder
• Minimal openings in glass - ø16 mm
• Glass thickness: 8mm-17.52mm
• Joint elements made of rod with a diameter of 20mm
• Type of steel - AISI 304
• Surface: satin - PVD coating in GUNMETAL color

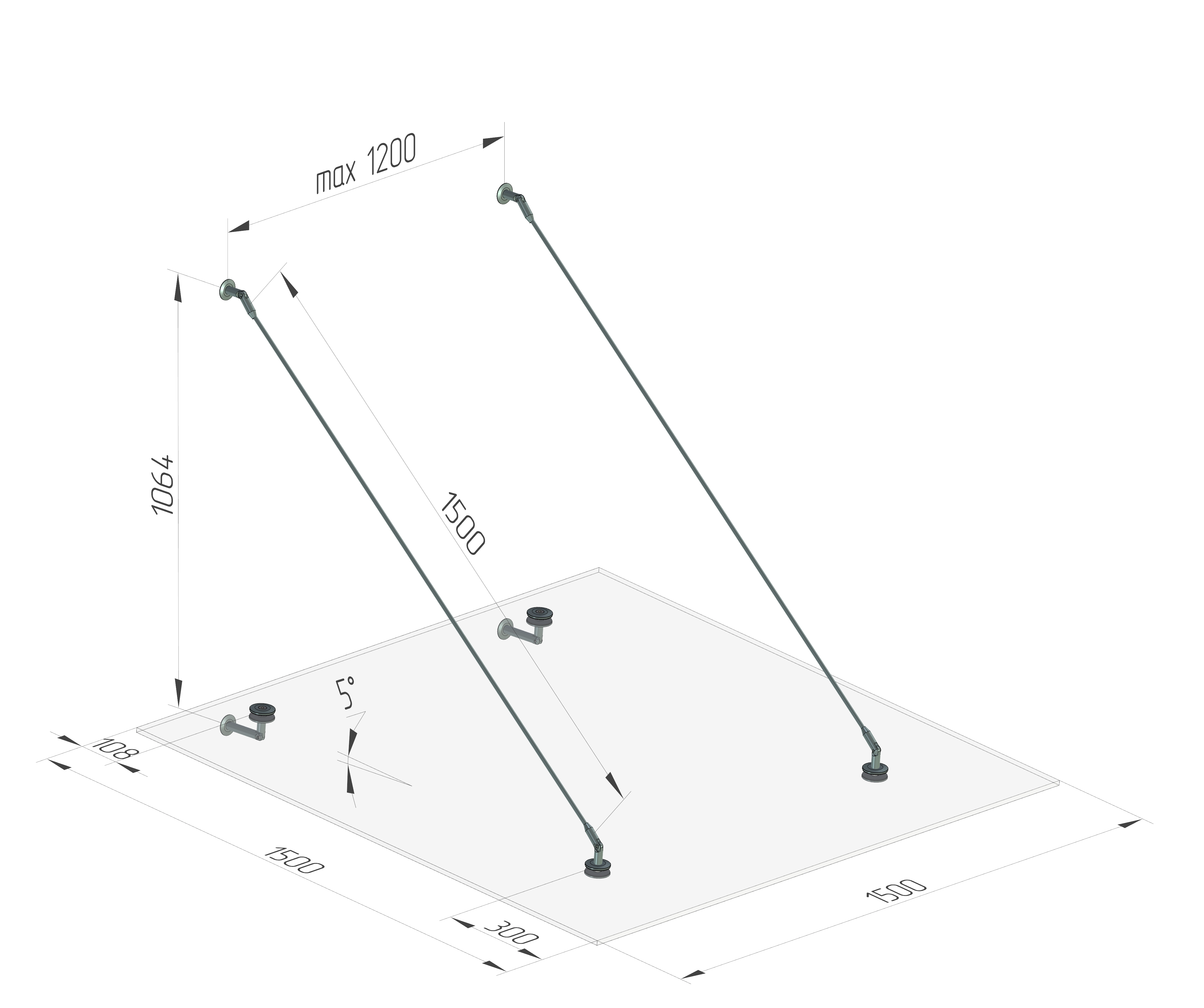

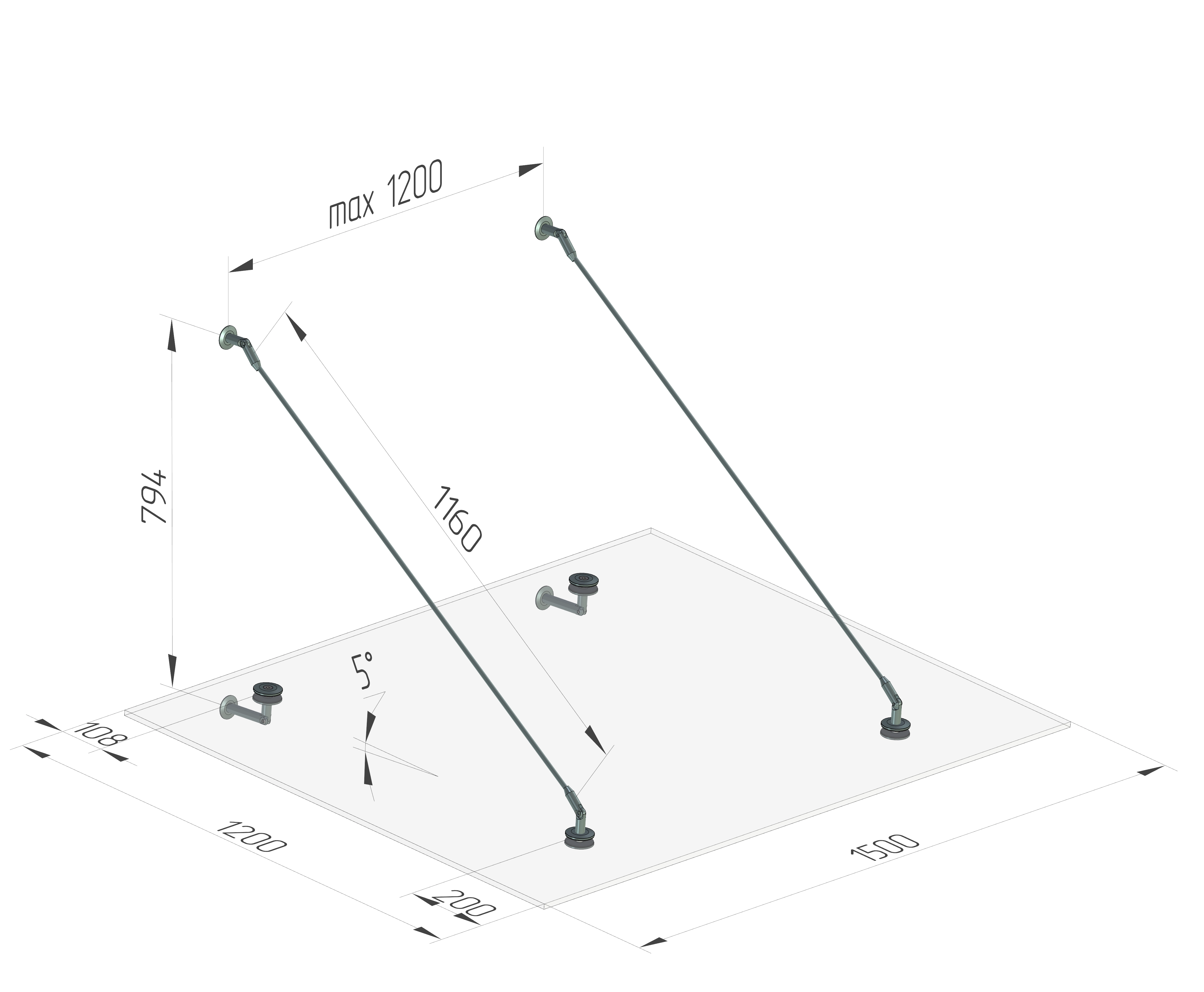

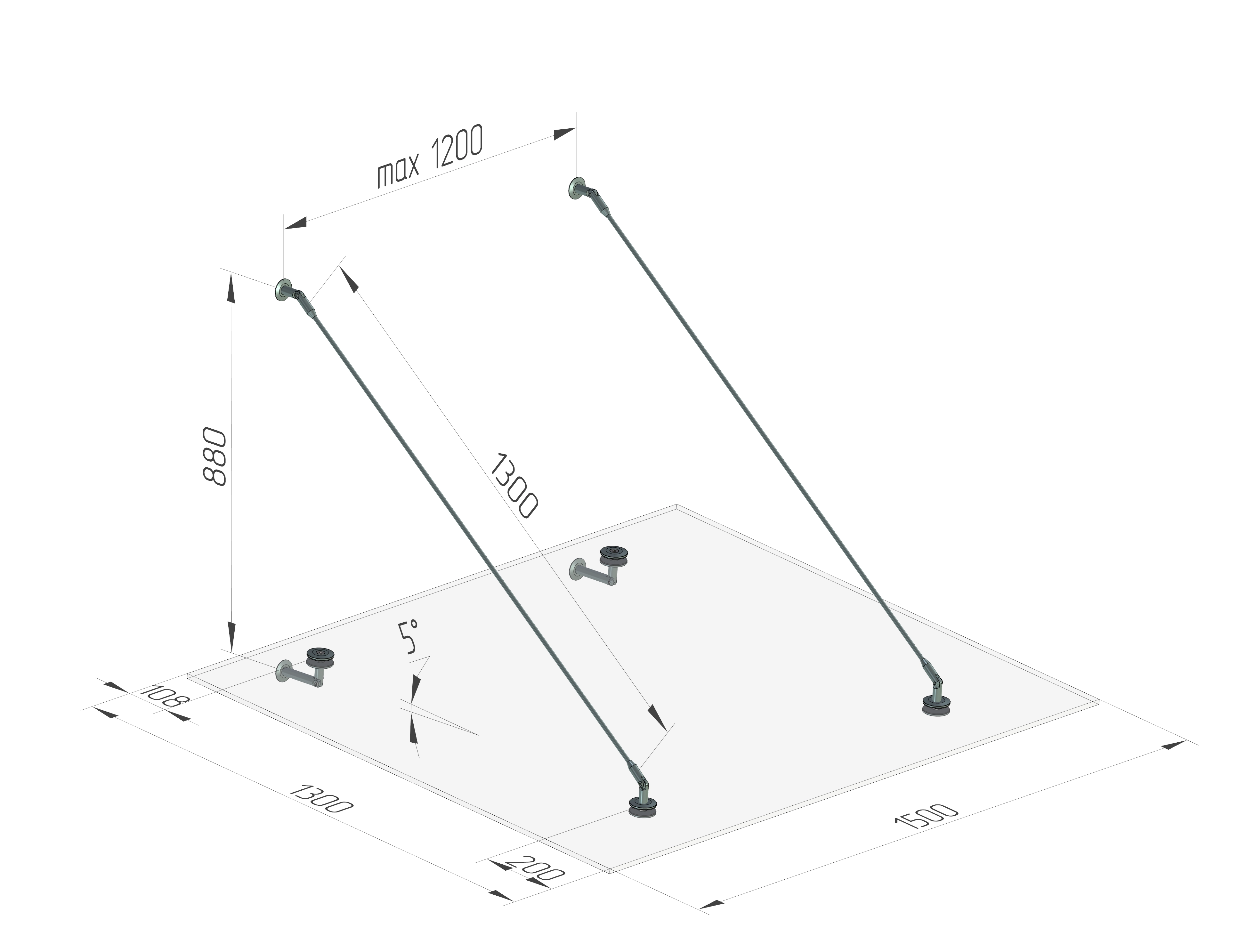

• Maximum reach of the visor: 1500mm

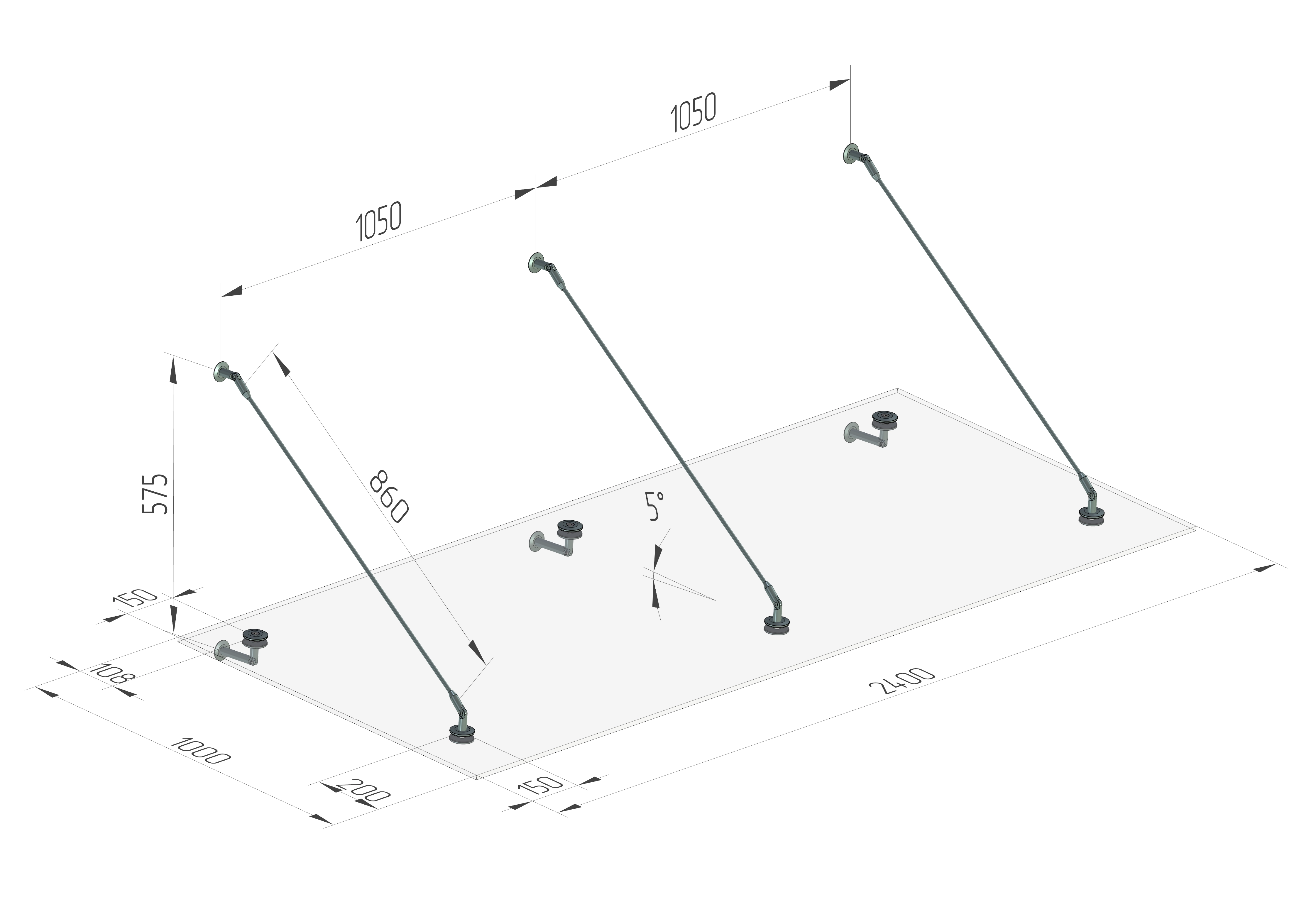

• Maximum distance between the slings: 1200mm

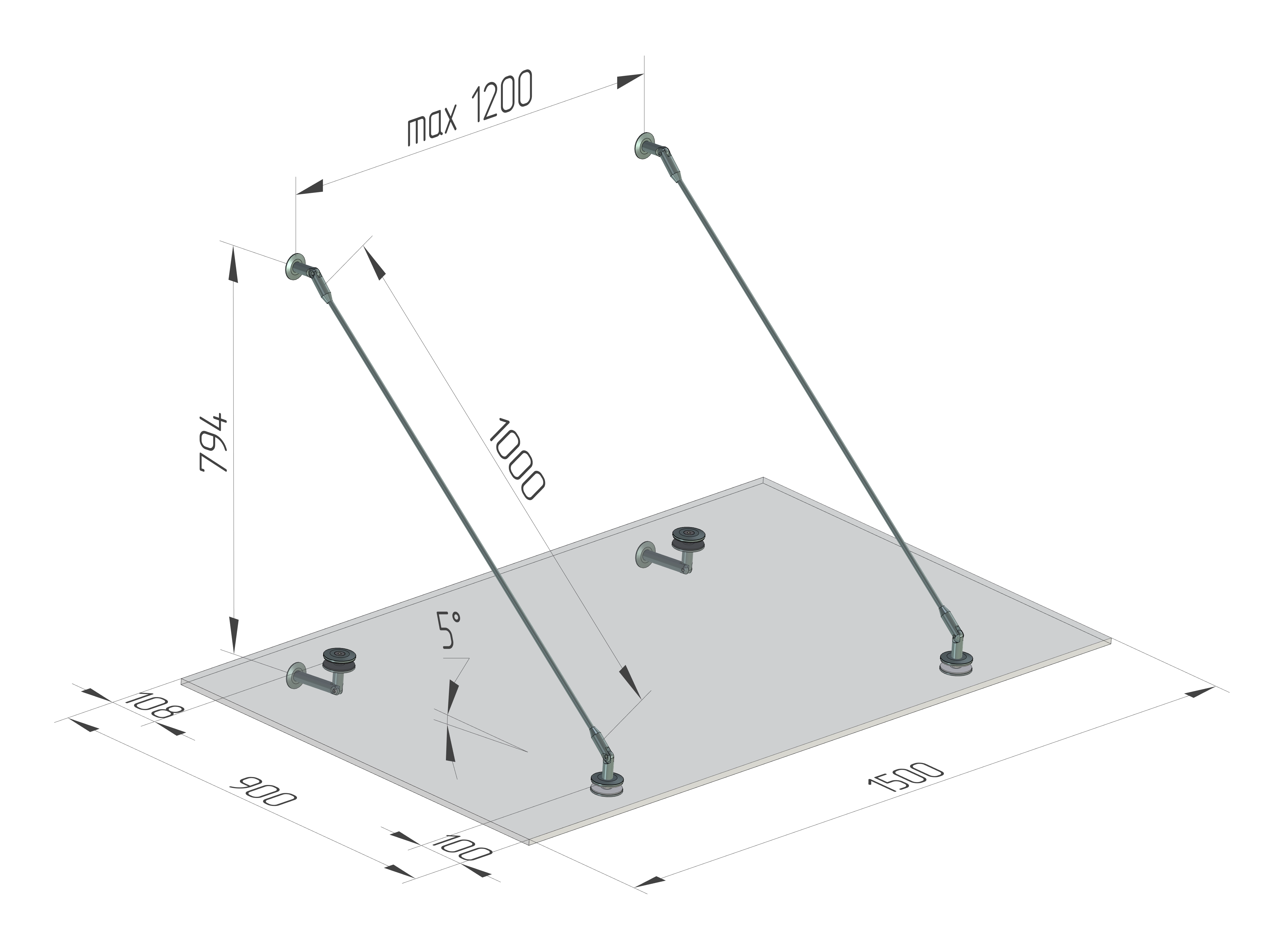

• Standard pull length 1000mm
• Possibility to fabricate a different dimension - pull length up to 1.5 m, but when applying a PVD coating, the string length cannot exceed 1.16 m because it will not fit into the machine.

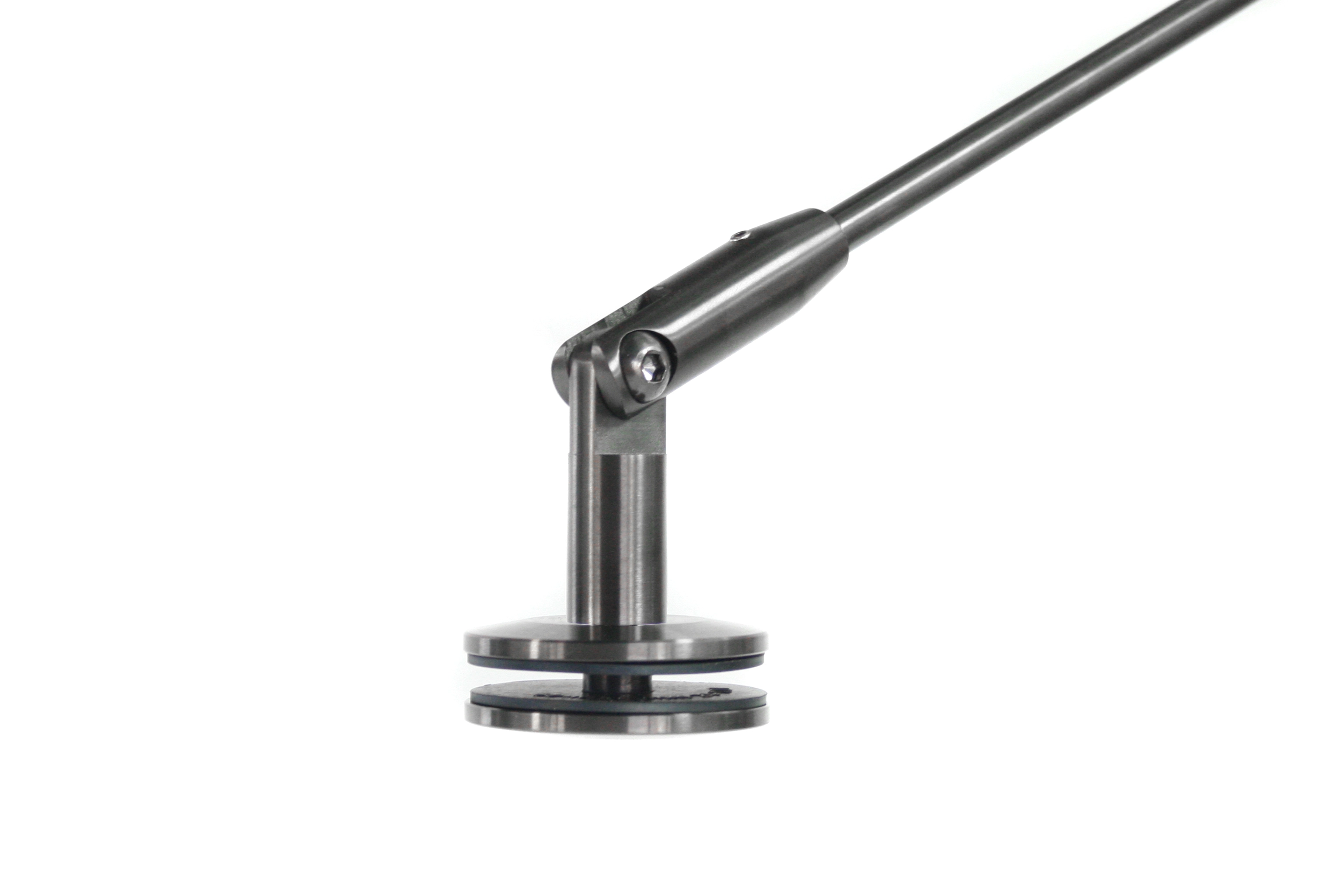

• Tension made of rod fi 10mm with threads at ends M10 right / M10 left
