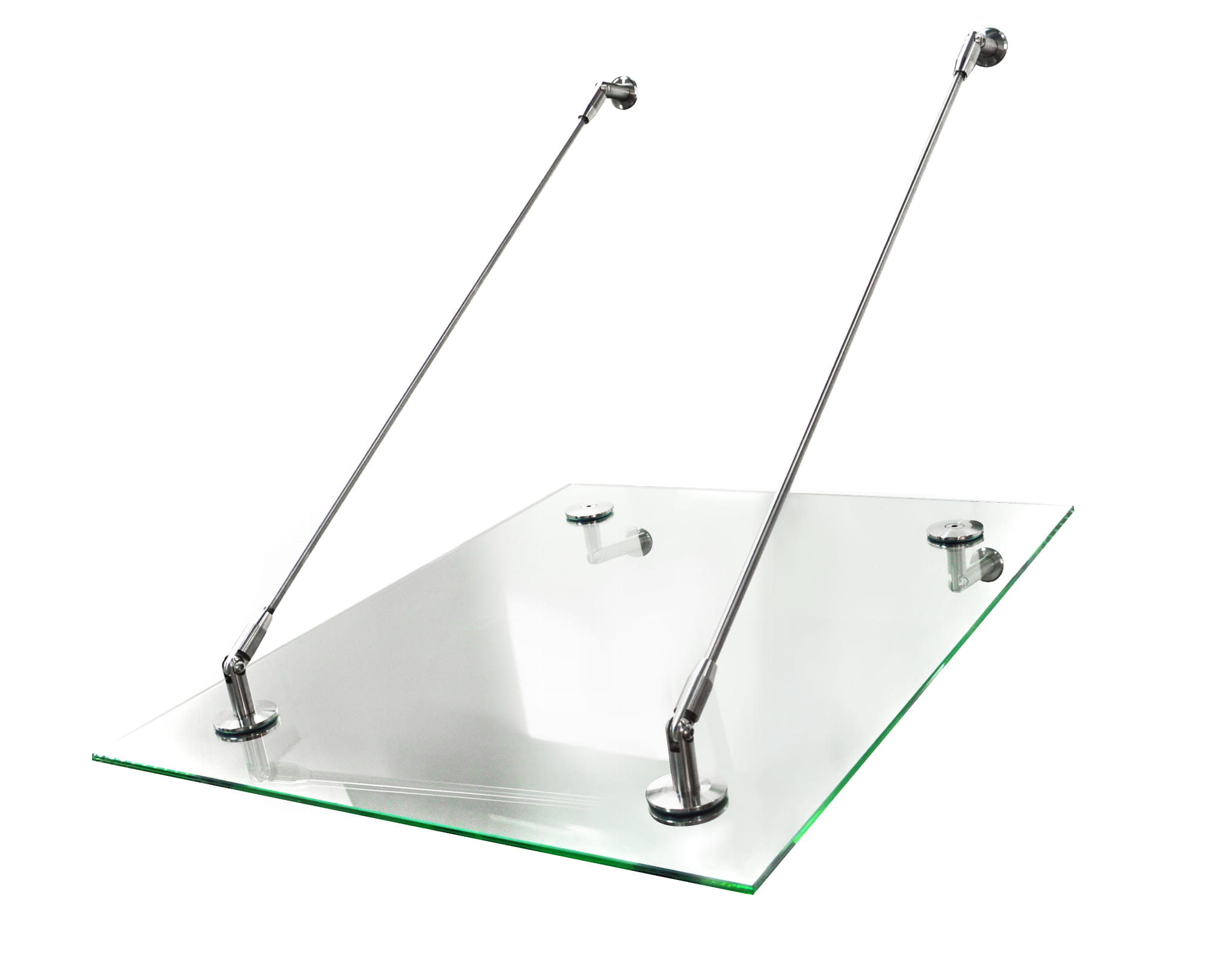

CNP canopy fixing SINGLE Ø 60mm, AISI 316, SATIN

Go to Product feedback

€62.96

Shipping costs are not included in the price.

Shipping

from €0.00 - Self-pickup - Warsaw (office) (Poland)

or individual pricing

Select a product variant:

Individual variants may differ in price

Choose a tension length

Select

Without tension

0.86m

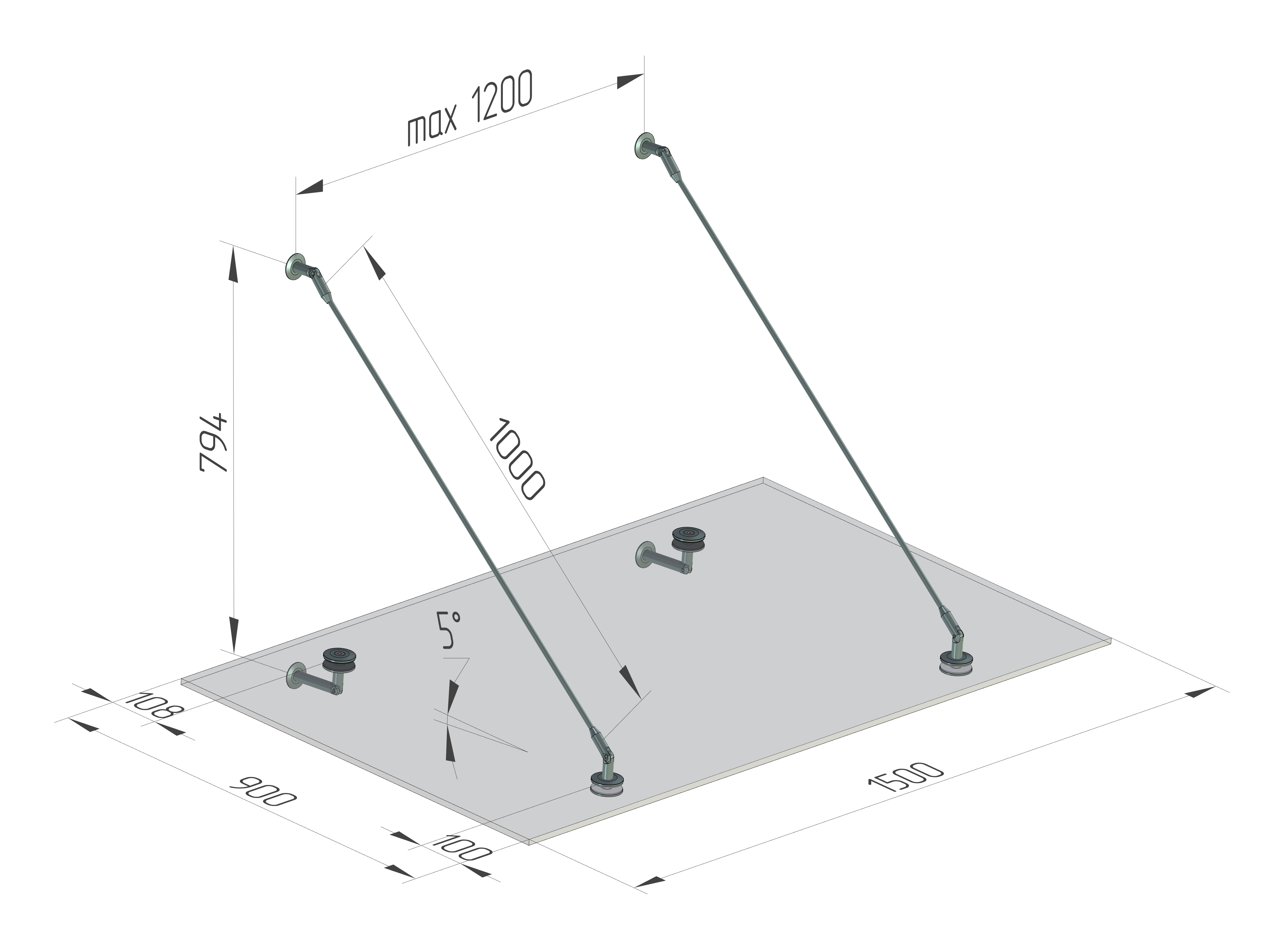

1,00m

1,16m

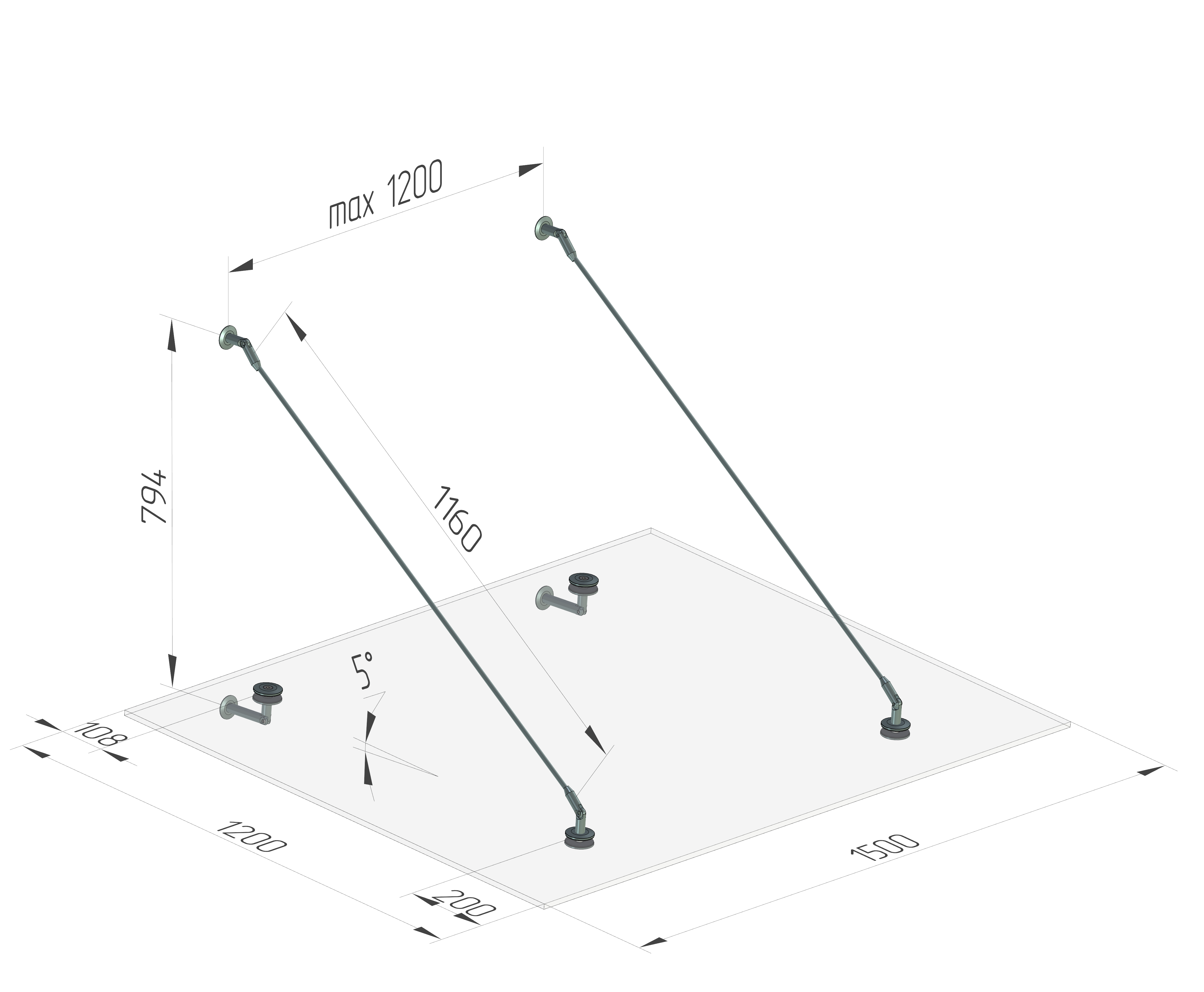

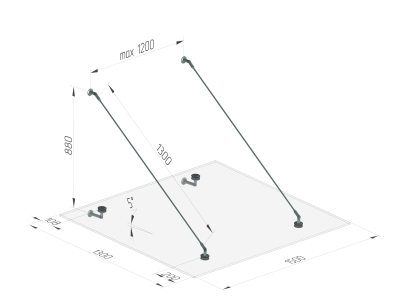

1,30m

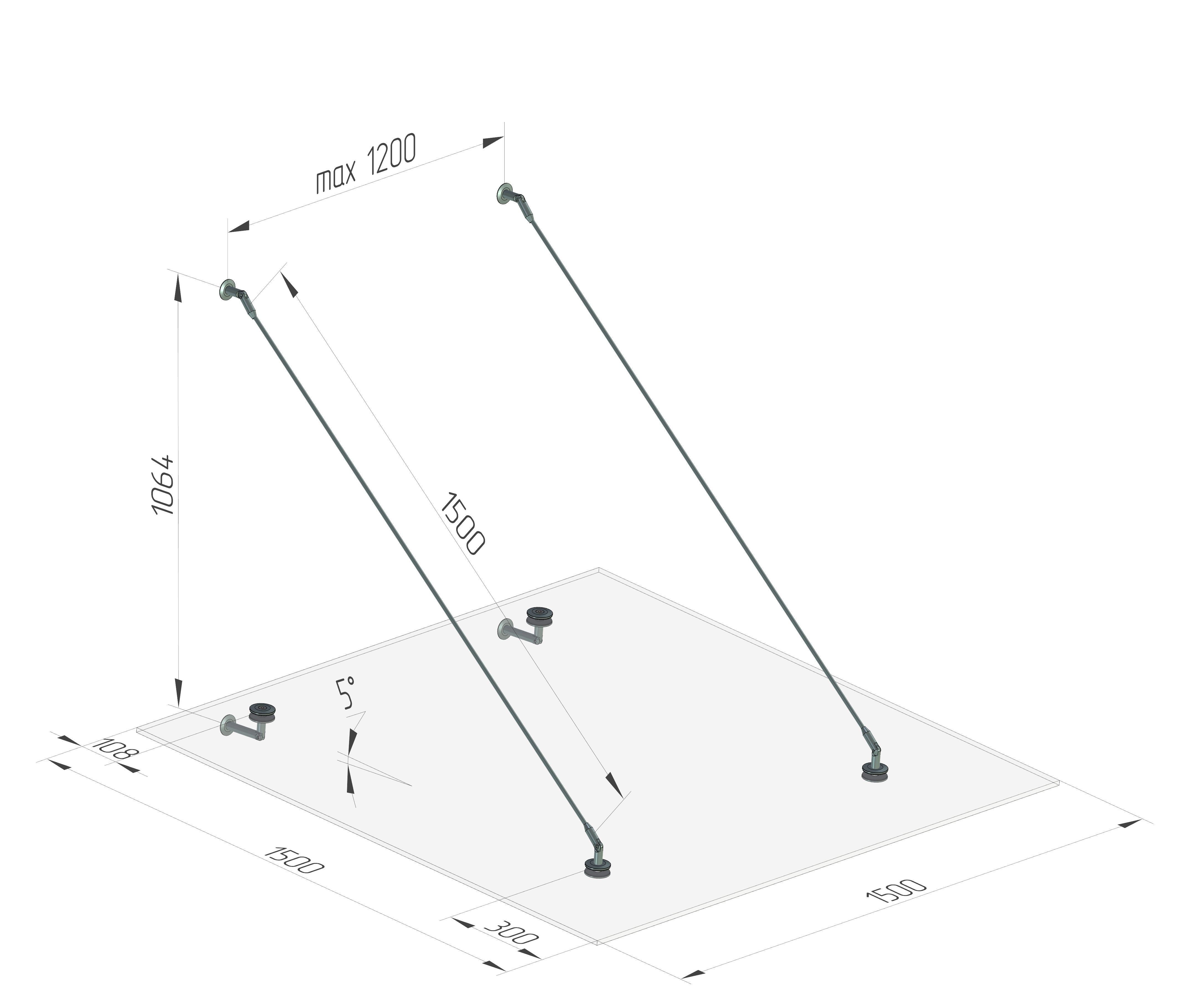

1,50m

Below I'll write an another length

Another length of tension (0 - 1,5m) Optional

Quantity

pcs.

Availability:

Product available

Shipping time: 3 days

Description

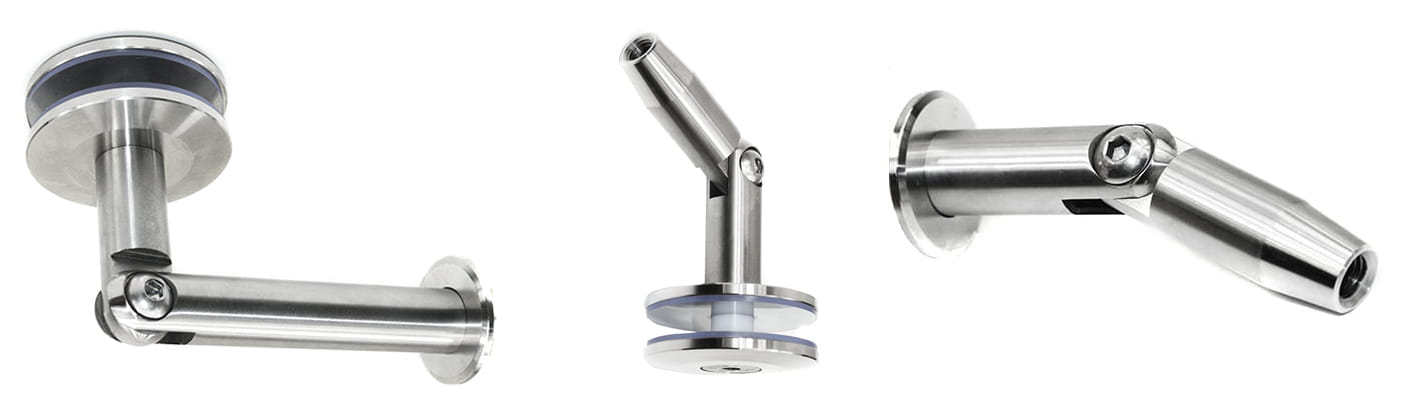

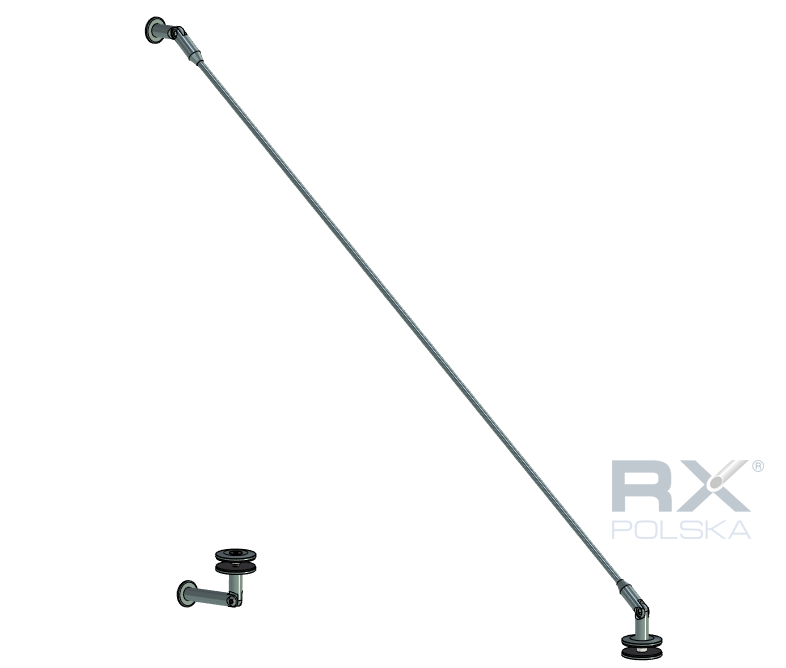

The composition of the set:
1 x wall mount - tension with a cover,

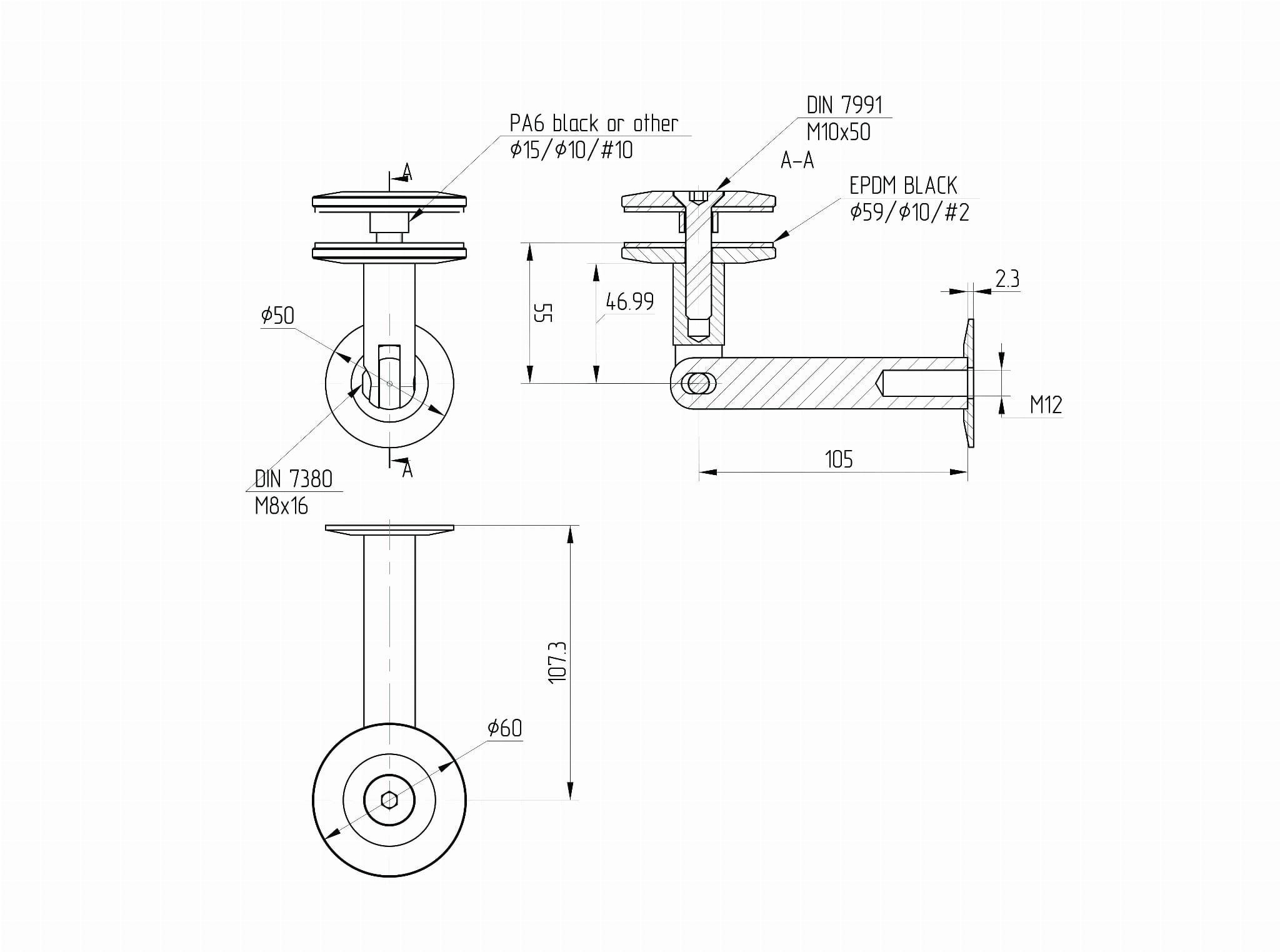

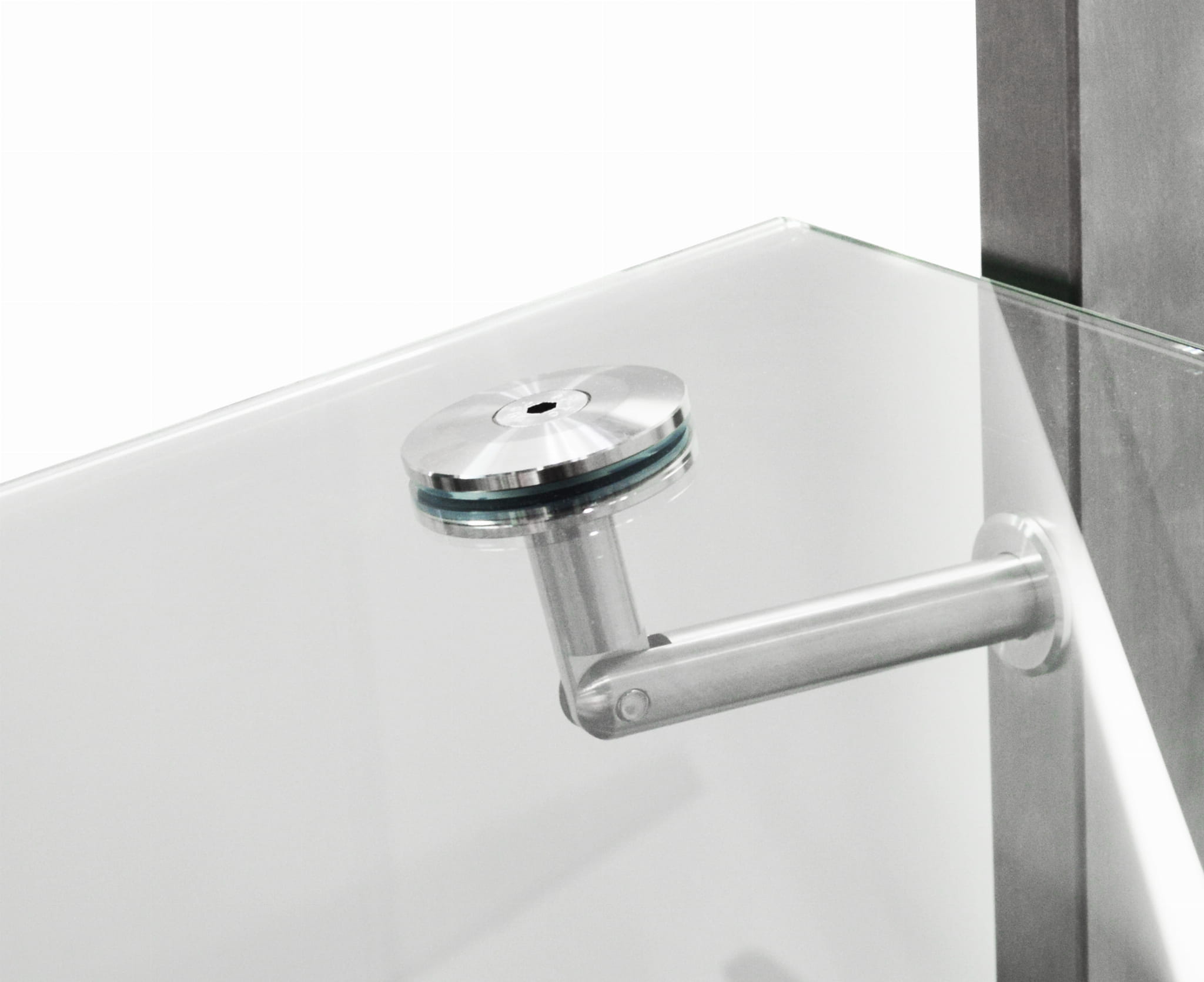

1 x wall mount - glass with a masking frame,

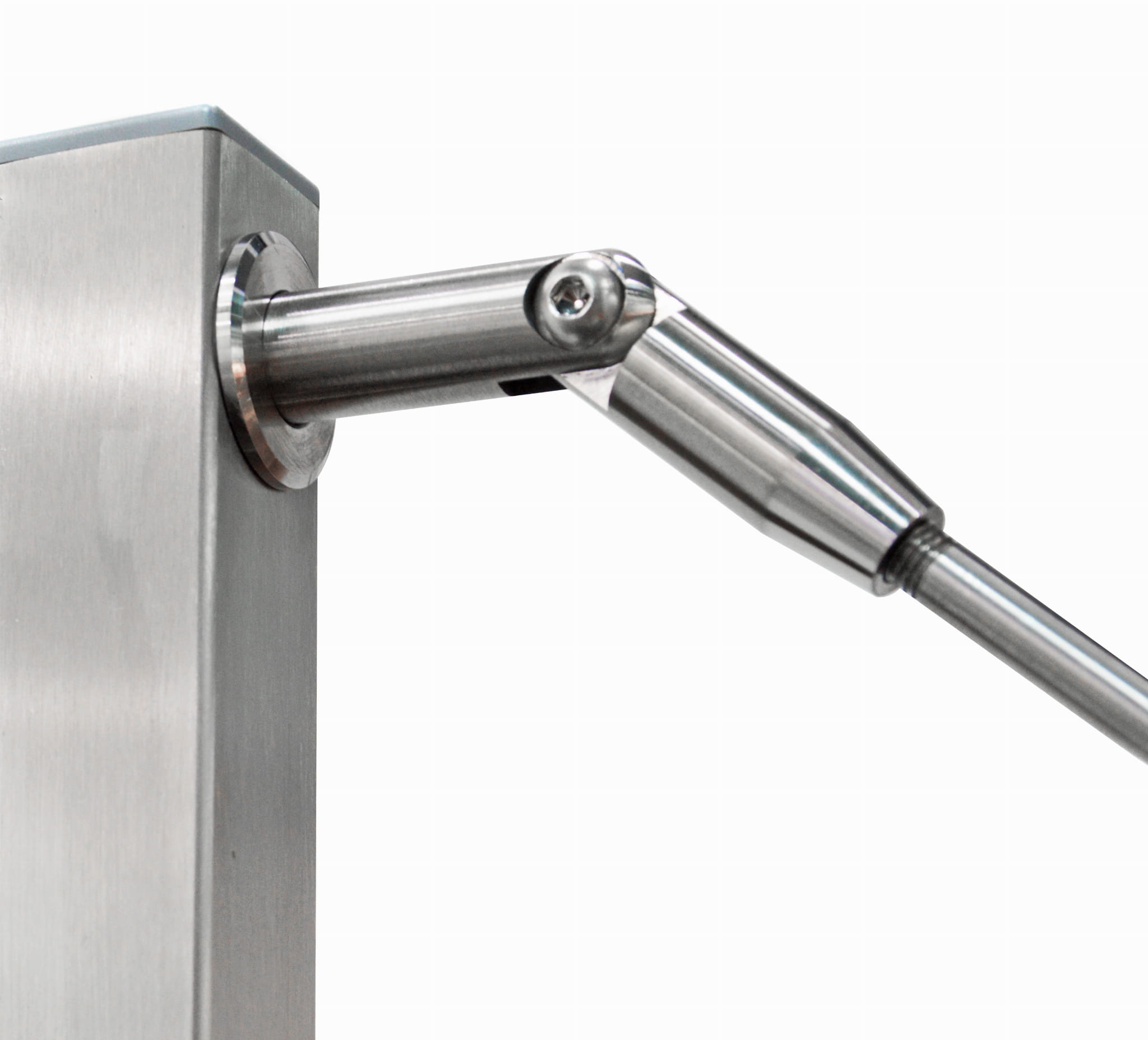

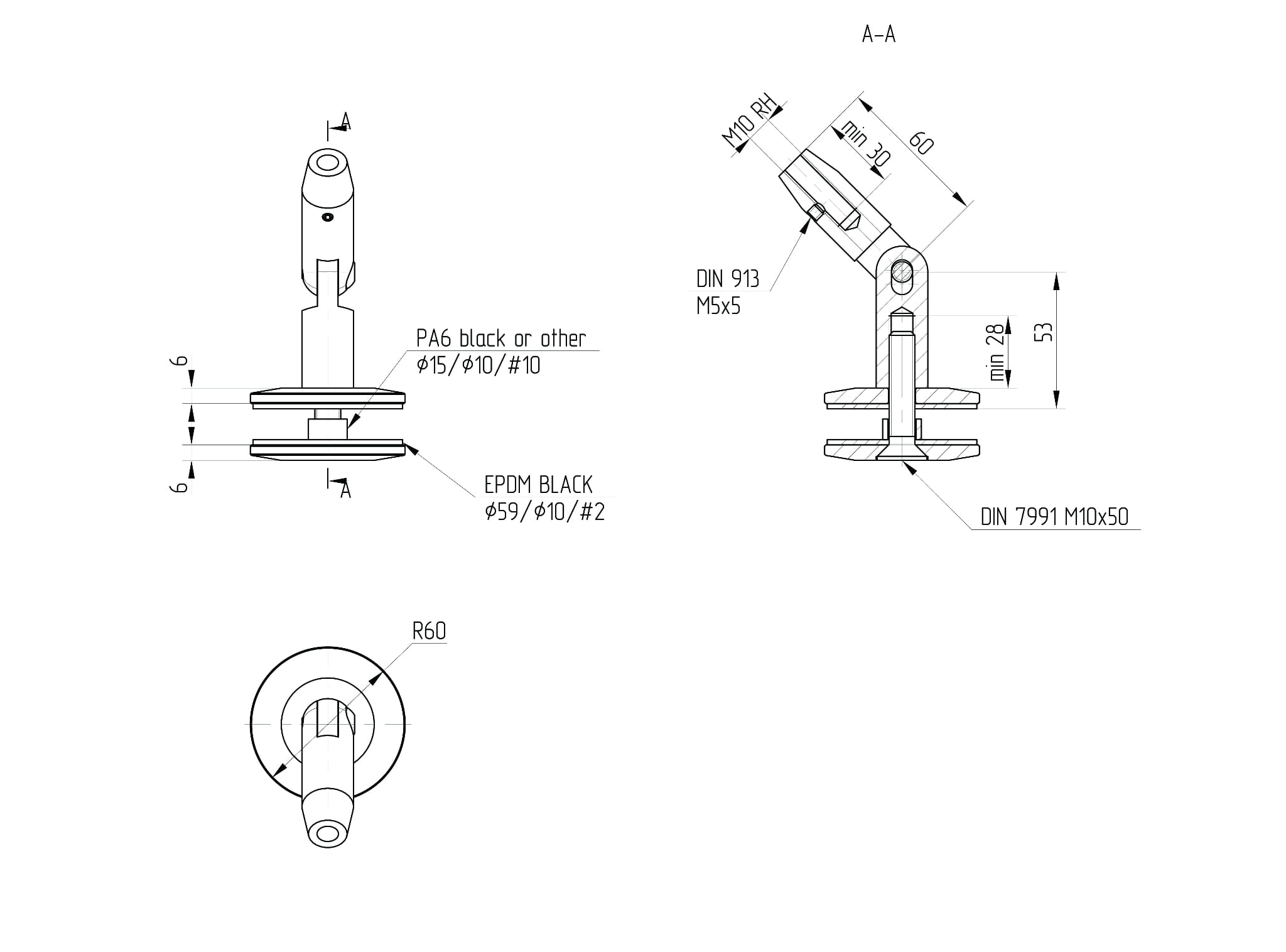

1 x tensioning-glass fixing,
1 x tension

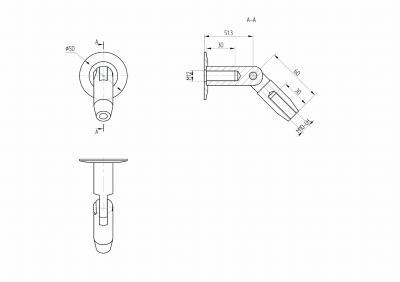

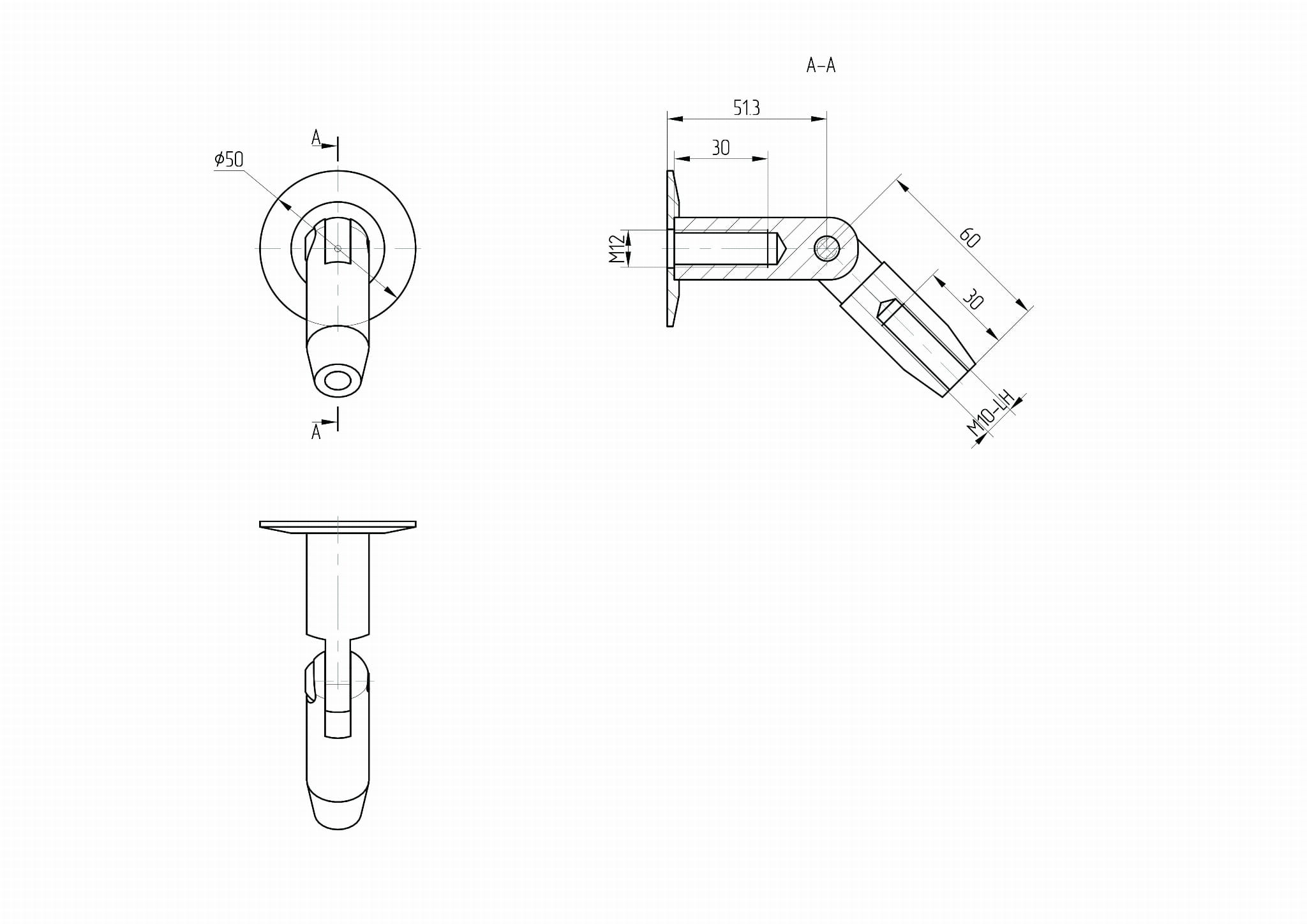

• Mounting elements to the mounting surface on individual M12 rods

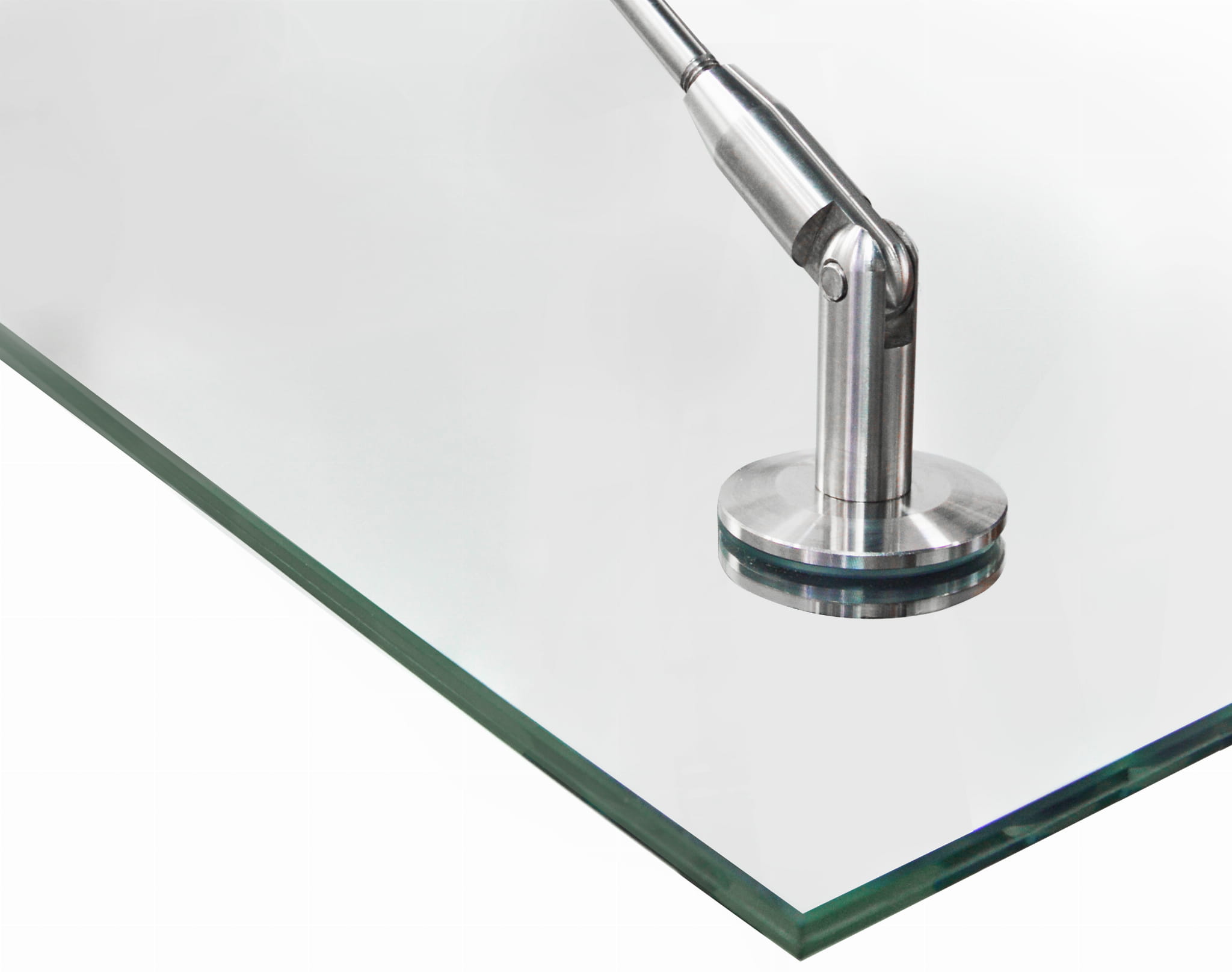

• Glass mounting brackets - Ø 60mm spot holder
• Minimal openings in glass - ø16 mm
• Glass thickness: 8mm-17.52mm
• Joint elements made of rod with a diameter of 20mm
• Type of steel - AISI 316
• Surface: satin (matte)

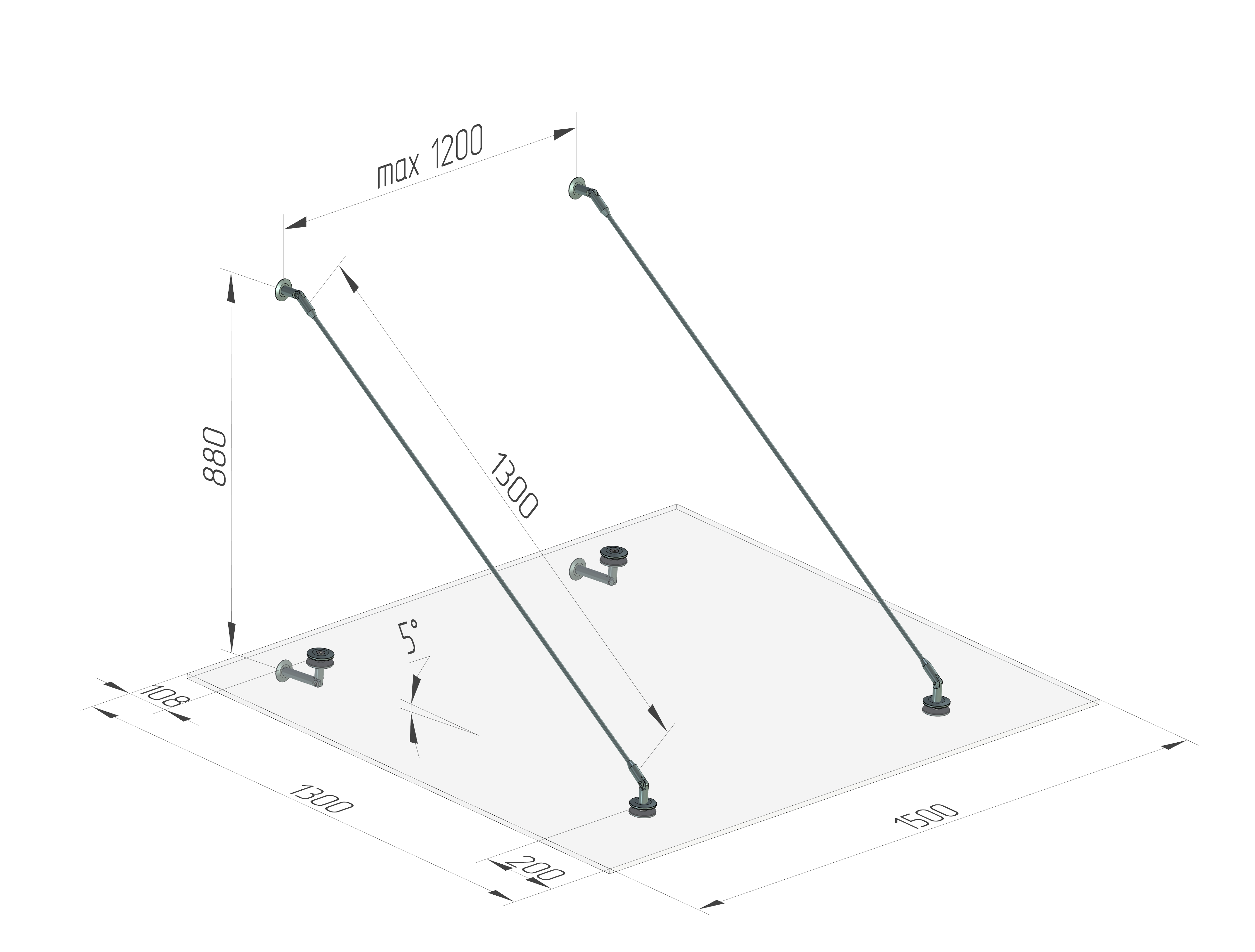

• Maximum reach of the visor: 1500mm

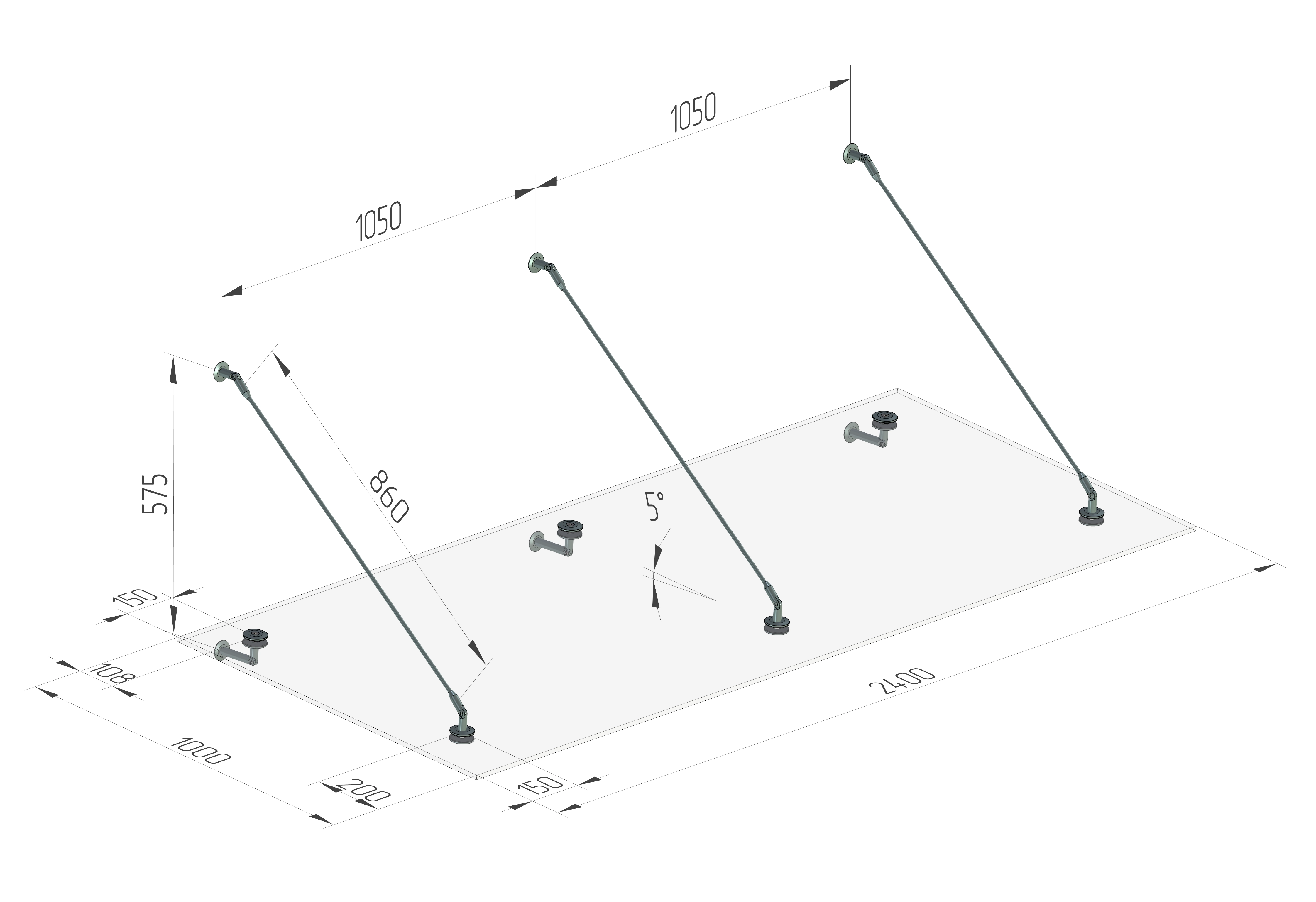

• Maximum distance between the slings: 1200mm
• Standard pull length 1000mm
• Possibility to fabricate a different dimension - pull length up to 1500mm (please specify length in "Remarks to order")
• Tension made of rod fi 10mm with threads at ends M10 right / M10 left

(View 3D download and open using Adobe Reader)
